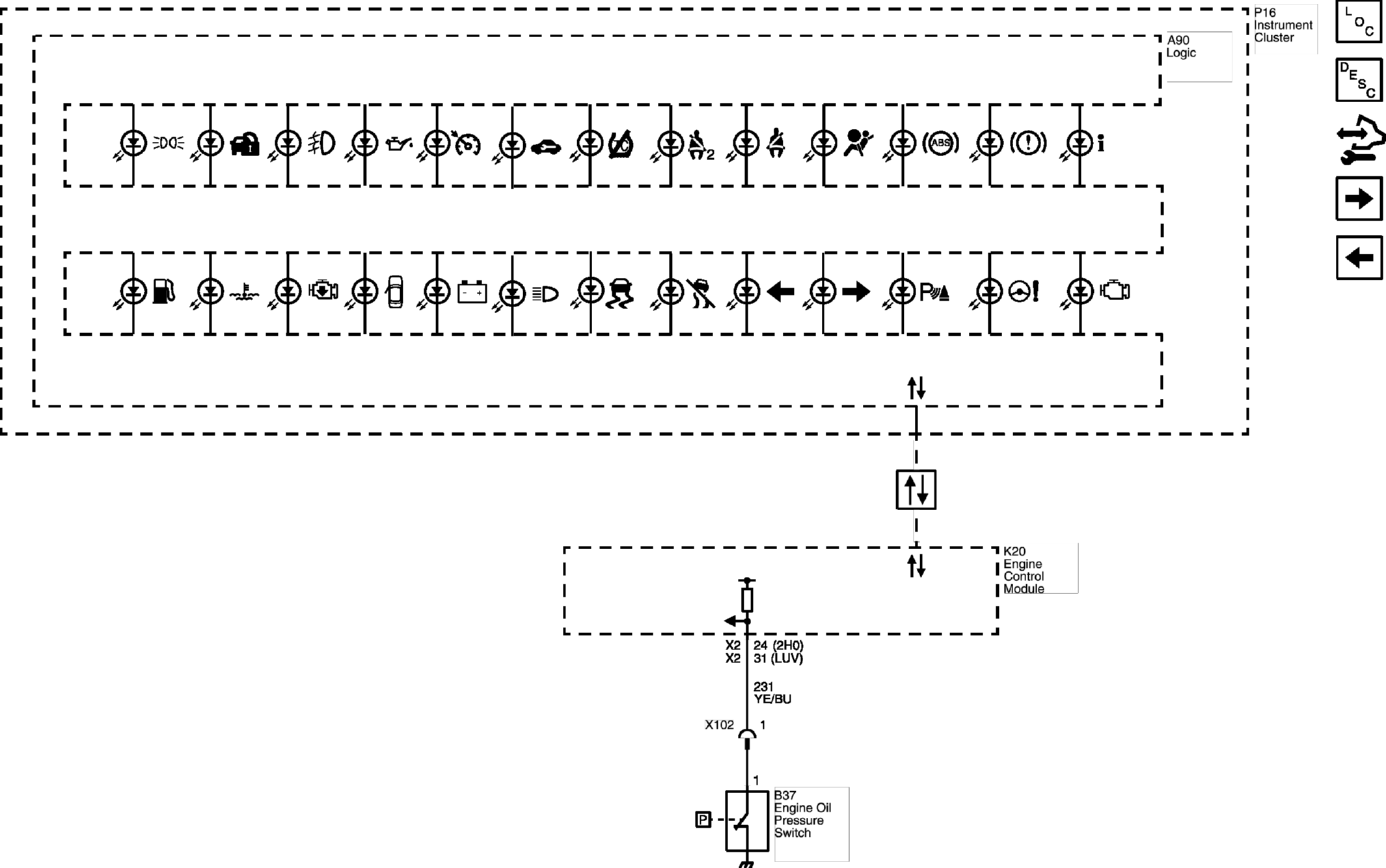

Home >> Chevrolet >> 2020 >> Trax LS, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics (Chevrolet) >> Indicators (Chevrolet)
