Ambient Air Temperature Sensor Replacement

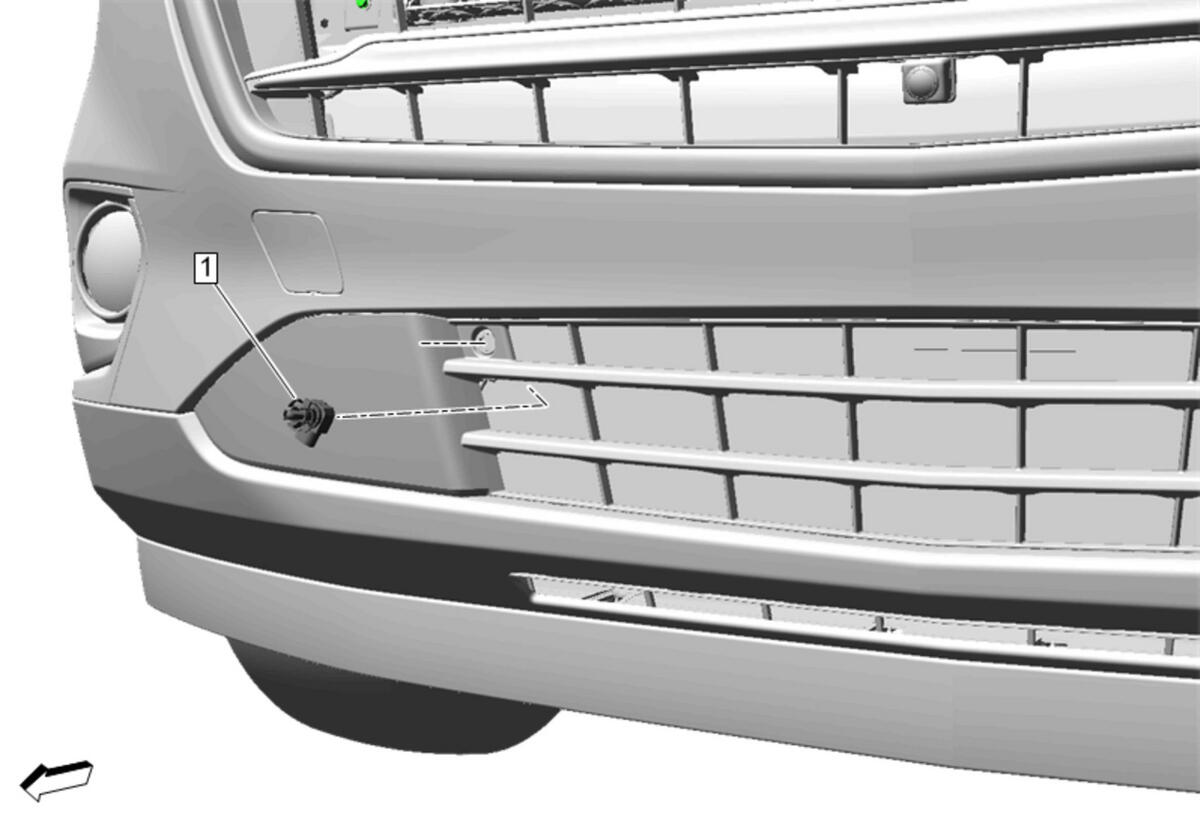

GM4735419Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Ambient Air Temperature Sensor

Procedures

  1. Squeeze the ambient air temperature sensor retaining tabs to remove from the front bumper fascia assembly.
  2. Disconnect the electrical connector.
