Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

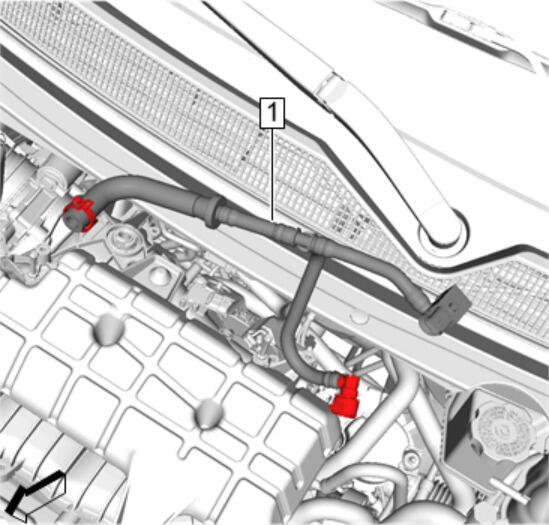

Power Brake Booster Vacuum Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

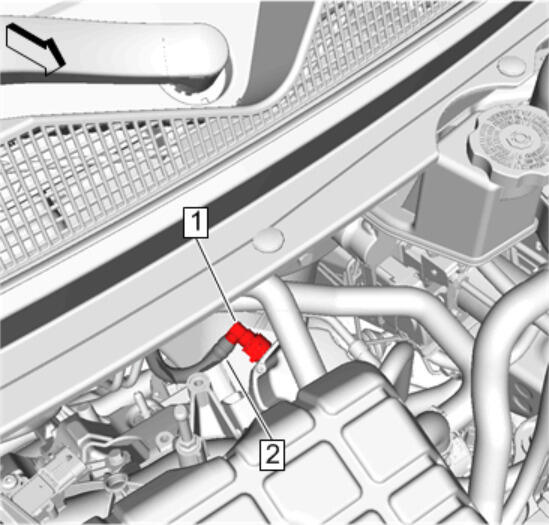

Power Brake Booster Vacuum Hose (2) @ Power Brake Booster Pump - Install
Quick Connect Fitting (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Vacuum Hose (2) @ Upper Intake Manifold - Install
Power Brake Booster Vacuum Hose Clamp (1) - Secure
Courtesy of GENERAL MOTORS COMPANY

NOTE:
A small amount of denatured alcohol may be used to ease assembly.

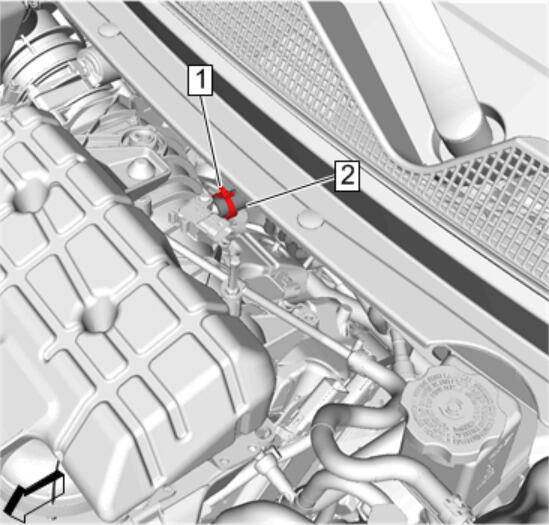

Power Brake Booster Vacuum Sensor (1) @ Power Brake Booster - Install
Courtesy of GENERAL MOTORS COMPANY

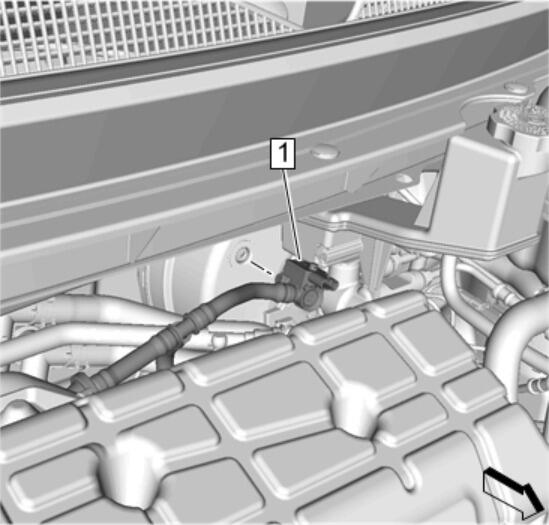

Electrical Connector (2) @ Power Brake Booster Vacuum Sensor - Connect

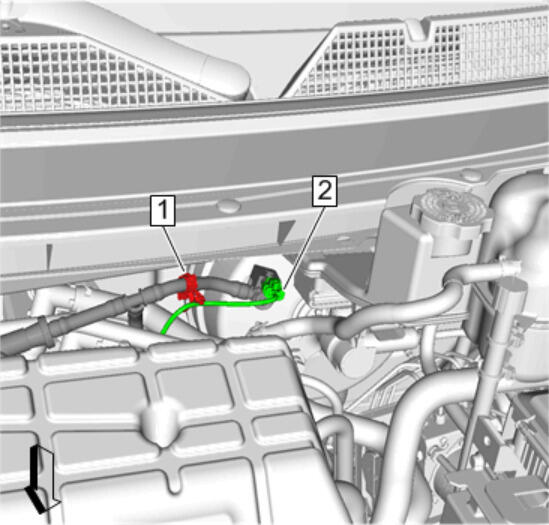

Engine Wiring Harness Retainer (1) @ Power Brake Booster Vacuum Hose - Install
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Hose/Pipe/Tube (1) @ Camshaft Cover - Install - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Cleaner Outlet Duct to Camshaft Cover) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Intake Manifold to Camshaft Cover)
