Installation Procedure

CAUTION:

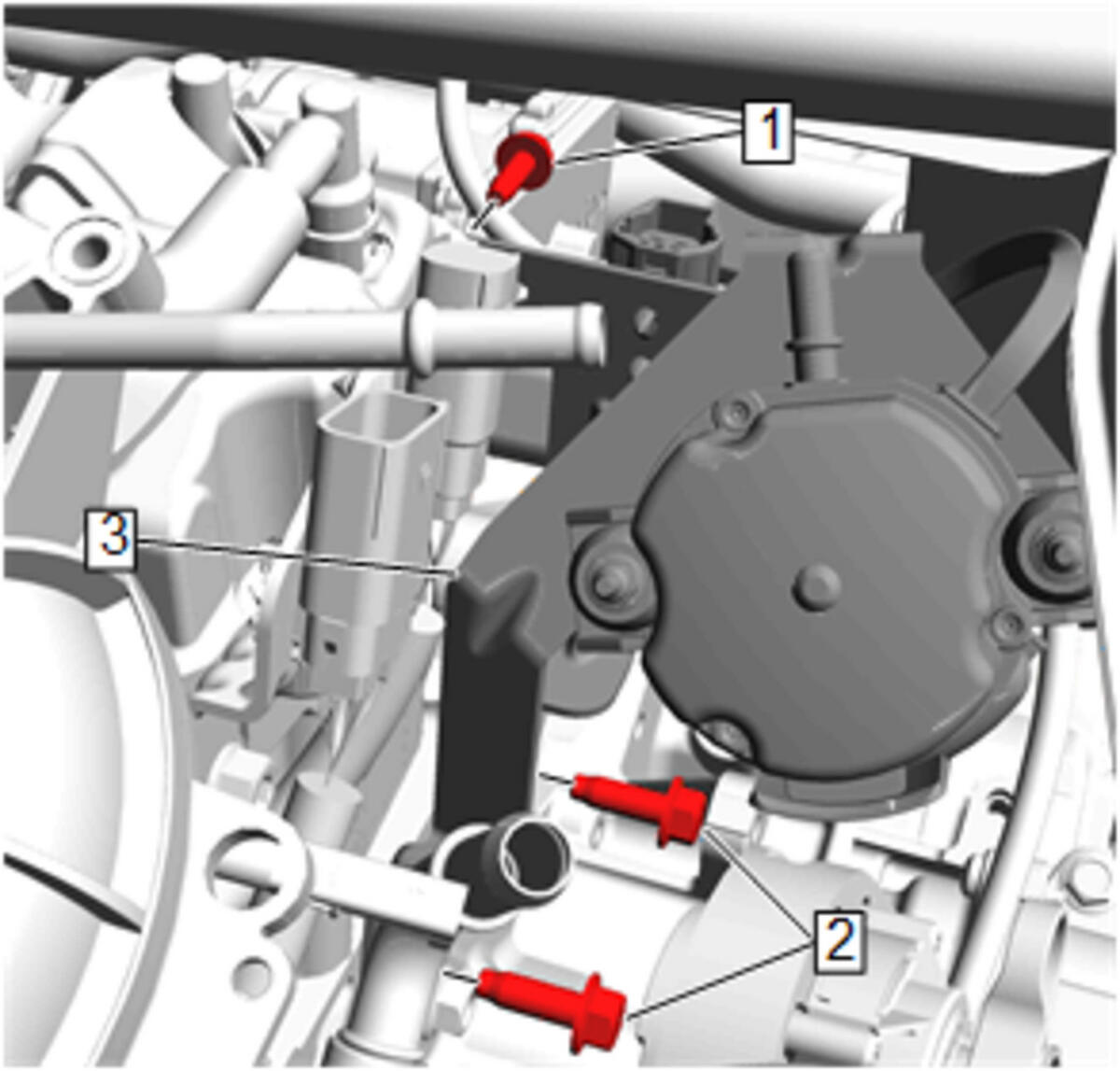

Power Brake Booster Pump Bolt - Lower (2) - Install and tighten [2x] 58 N.m (43 lb ft)
Power Brake Booster Pump Bolt - Upper (1) - Install and tighten 22 N.m (16 lb ft)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

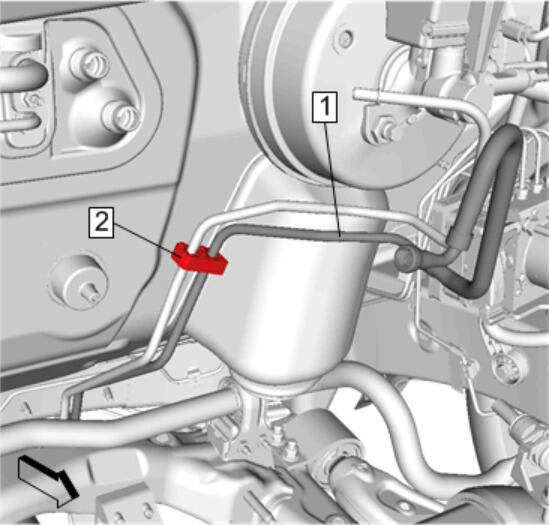

Fuel Feed Pipe (1) - Install - Fuel Feed Pipe Replacement (AWD) , or Fuel Feed Pipe Replacement (FWD) , or Fuel Feed Pipe Replacement (AWD/FWD, At Engine)
Courtesy of GENERAL MOTORS COMPANY

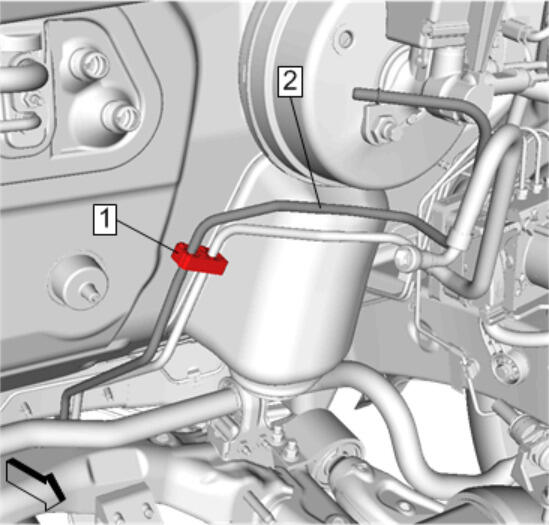

Evaporative Emission Front Pipe (2) - Install - Evaporative Emission Front Pipe Replacement (AWD) , or Evaporative Emission Front Pipe Replacement (FWD)
Courtesy of GENERAL MOTORS COMPANY

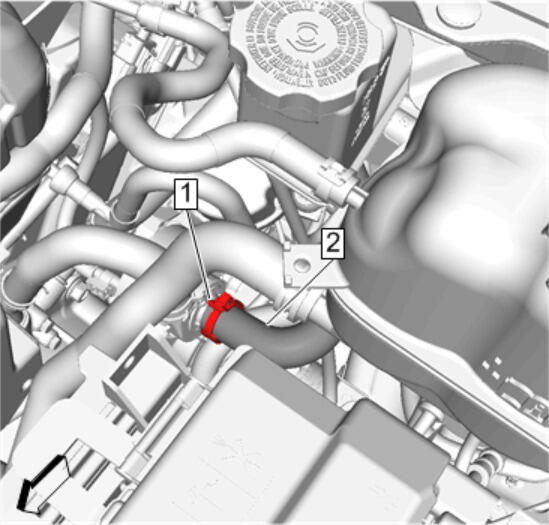

Heater Inlet Hose - Engine Coolant Thermostat Housing to Heater Outlet Hose Connector (2) - Install - Heater Inlet Hose Replacement (Engine Coolant Thermostat Housing to Heater Outlet Hose Connector)
Courtesy of GENERAL MOTORS COMPANY

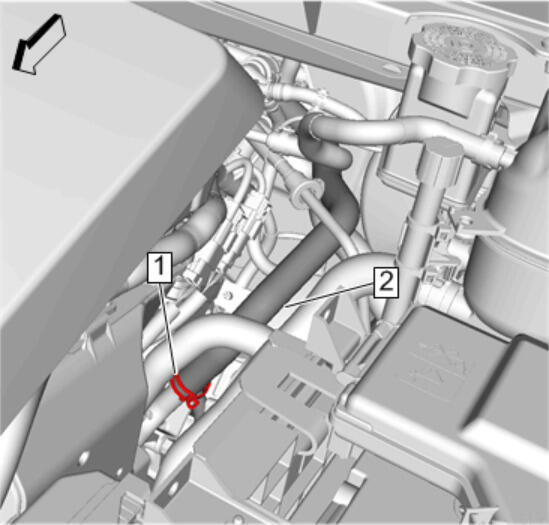

Heater Outlet Hose - Heater Coolant Pump to Connector (2) - Install - Heater Outlet Hose Replacement (Heater Coolant Pump to Connector)
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Outlet Hose (2) - Install - Radiator Surge Tank Outlet Hose Replacement (LFY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Overflow Hose - Radiator Surge Tank to Engine Coolant Air Bleed Pipe (2) - Install - Radiator Surge Tank Overflow Hose Replacement (Radiator Surge Tank to Engine Coolant Air Bleed Pipe)
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (3) - Install - Intake Manifold Cover Replacement
