Hood Rear Outer Air Inlet Seal Replacement

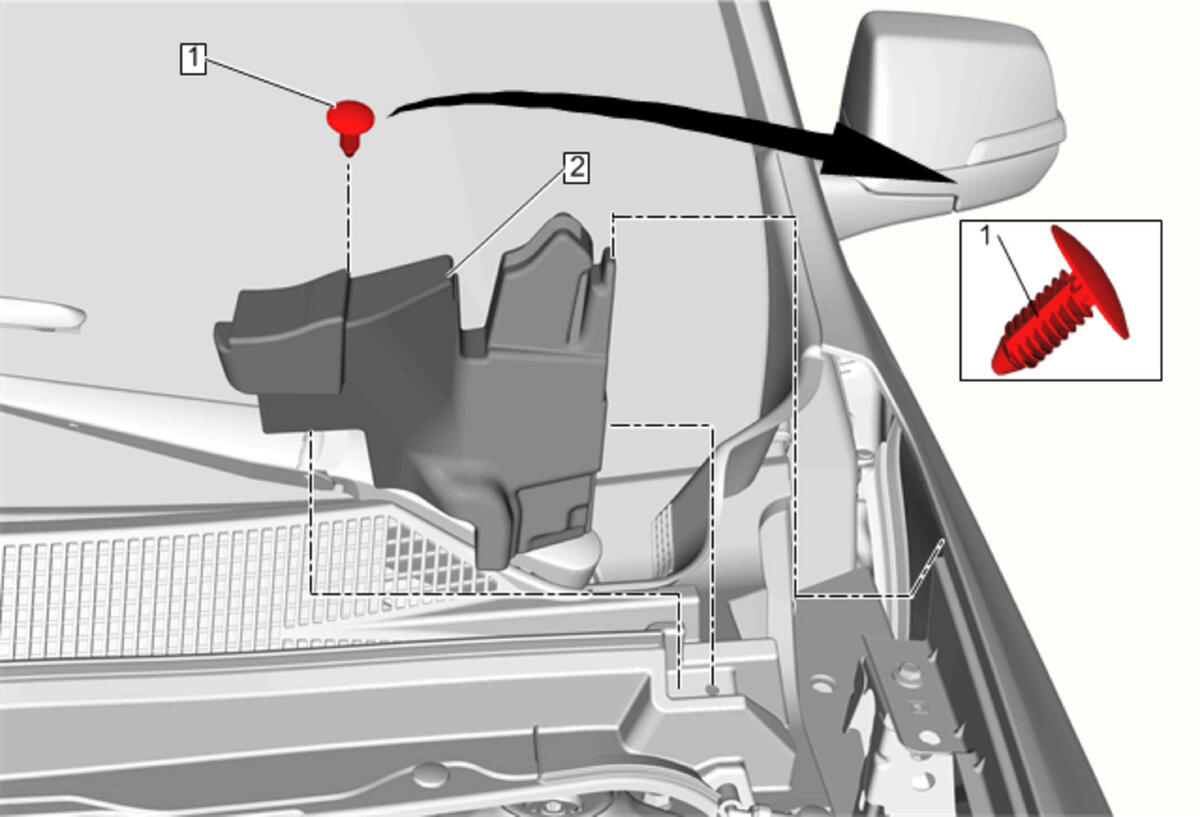

GM4709149Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Rear Outer Air Inlet Seal Retainer
2 Hood Rear Outer Air Inlet Seal
Procedure
Using a trim type tool, release the retainer and gentle pull on the seal to remove the seal from under the front fender.
