Fuel Tank Filler Door Replacement
Courtesy of GENERAL MOTORS COMPANY

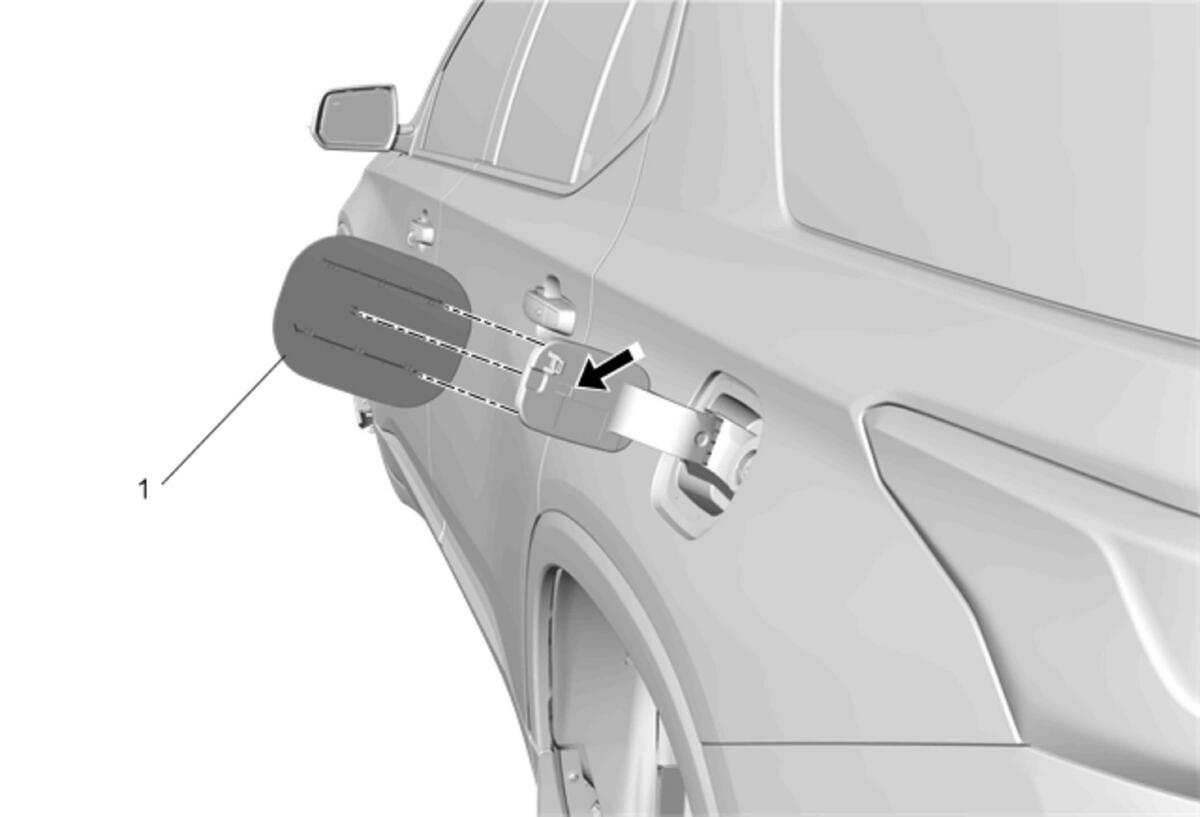

Callout
Component Name
1
Fuel Tank Filler Door
Procedure
Position the fuel tank filler door to the full open position.
Using light outward sliding pressure on the filler door, release the retainer on the fuel tank filler door from the hinge.
