Rear Side Door Weatherstrip Replacement - Body Side

1. Center Pillar Lower Trim Panel Replacement
2. Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)

Procedure

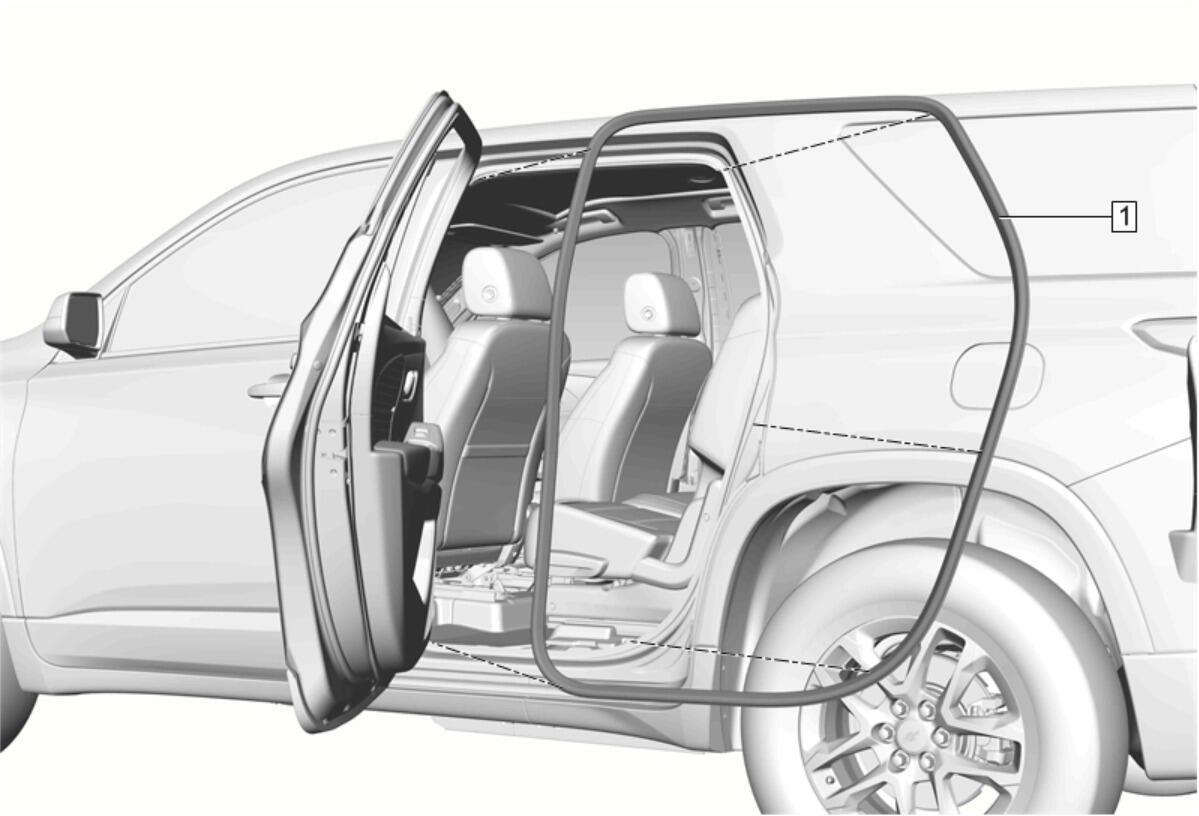

1. Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
2. Position the weatherstrip in the upper corner of the center pillar.
3. Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the weatherstrip is fully seated in the corners.
4. Ensure that the weatherstrip is seated on the entire door opening flange.
