Liftgate Wiring Harness Extension Harness Replacement

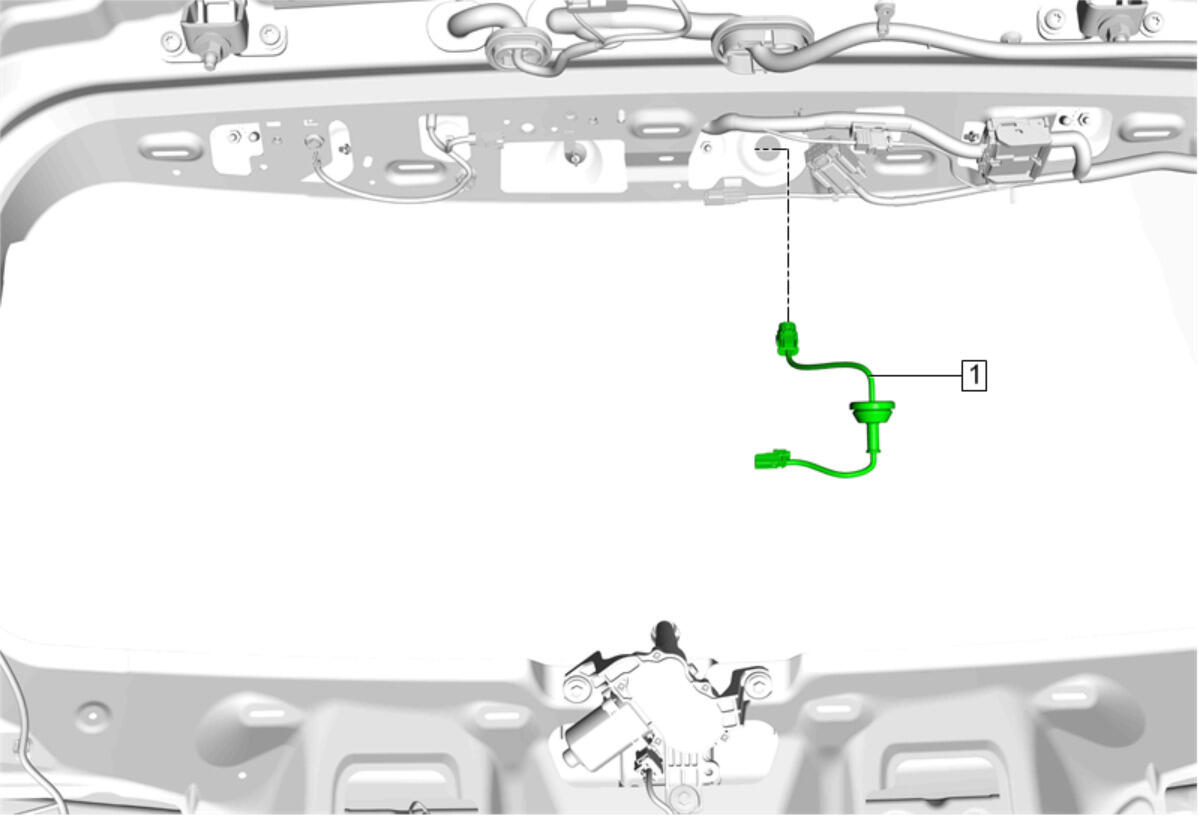

GM4707184Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Liftgate Lower Trim Finish Panel Replacement
  2. High Mount Stop Lamp Replacement
1 Liftgate Wiring Harness Extension Harness
Procedure
Disconnect all electrical connectors.
