Hood Secondary Latch Release Cable Replacement

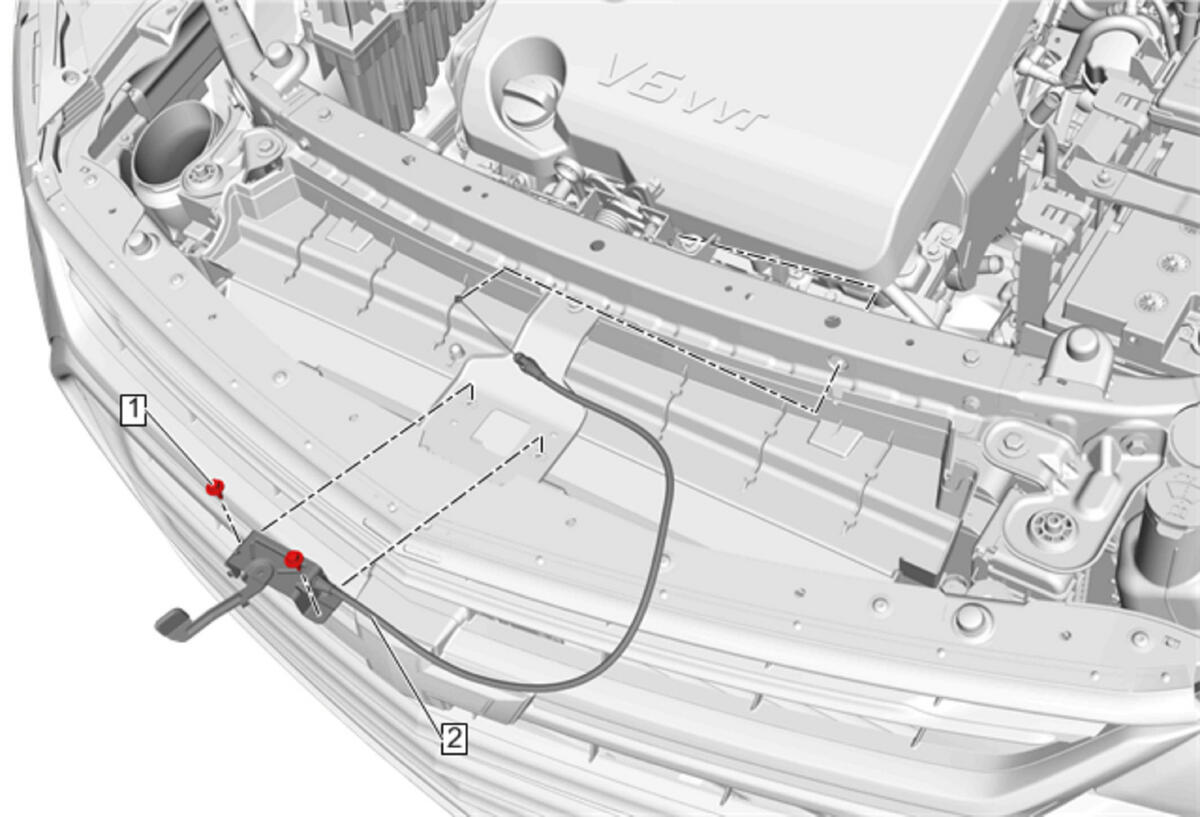

GM4704477Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Intake Air Splash Shield Replacement
1 Hood Secondary Latch Release Cable Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Hood Secondary Latch Release Cable

Procedure

  1. Disconnect the release cable from the hood primary latch.
  2. Disconnect the hood secondary latch release cable retainer from the bracket.
  3. Align the hood secondary latch release cable latch if necessary.
