Home >> Chevrolet >> 2020 >> Traverse High Country, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Repair Instructions >> Hood Replacement

Hood Replacement

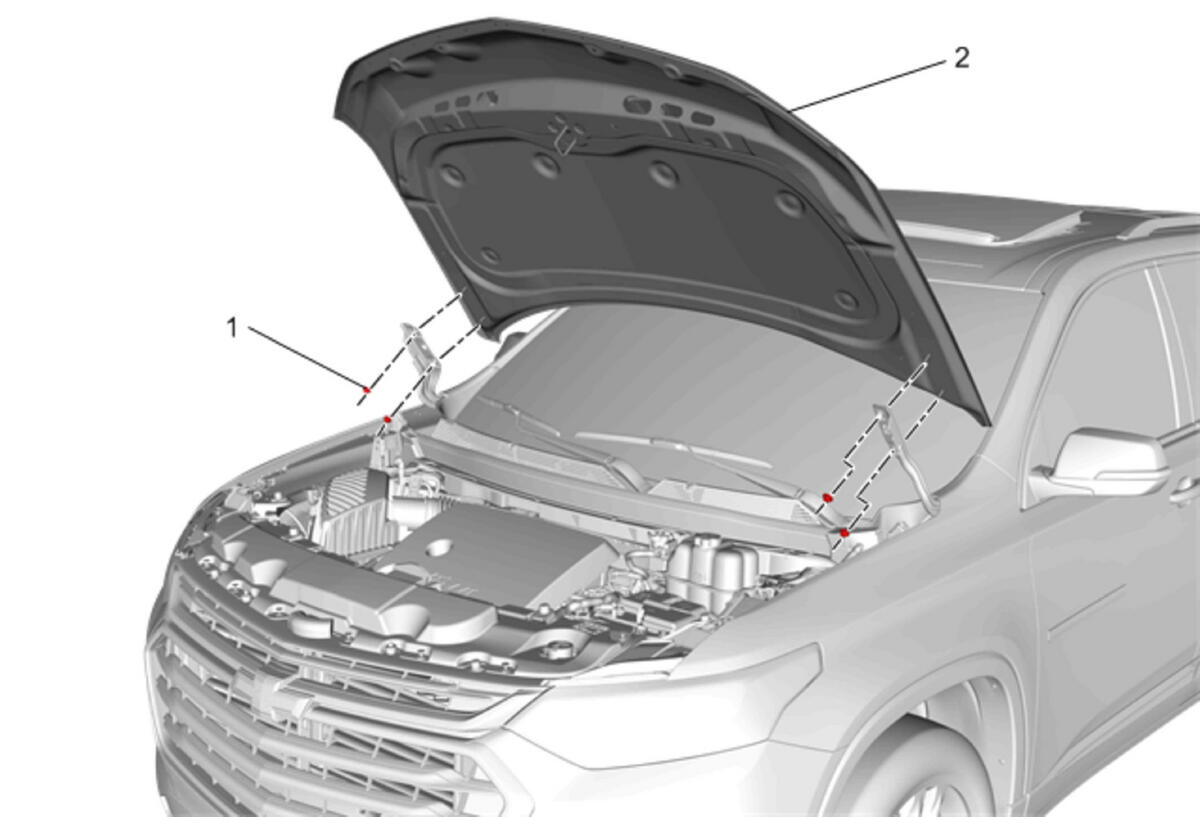

GM4709090Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Hinge Nut [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Hood

Procedure

  1. With the aid of an assistant, remove the hood.
  2. Transfer components as necessary.
  3. Hood - Adjust - Hood Adjustment
