Front and Rear Side Door Lower Auxiliary Weatherstrip Replacement

GM4699157

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Open both doors on the side of the vehicle being serviced.

1

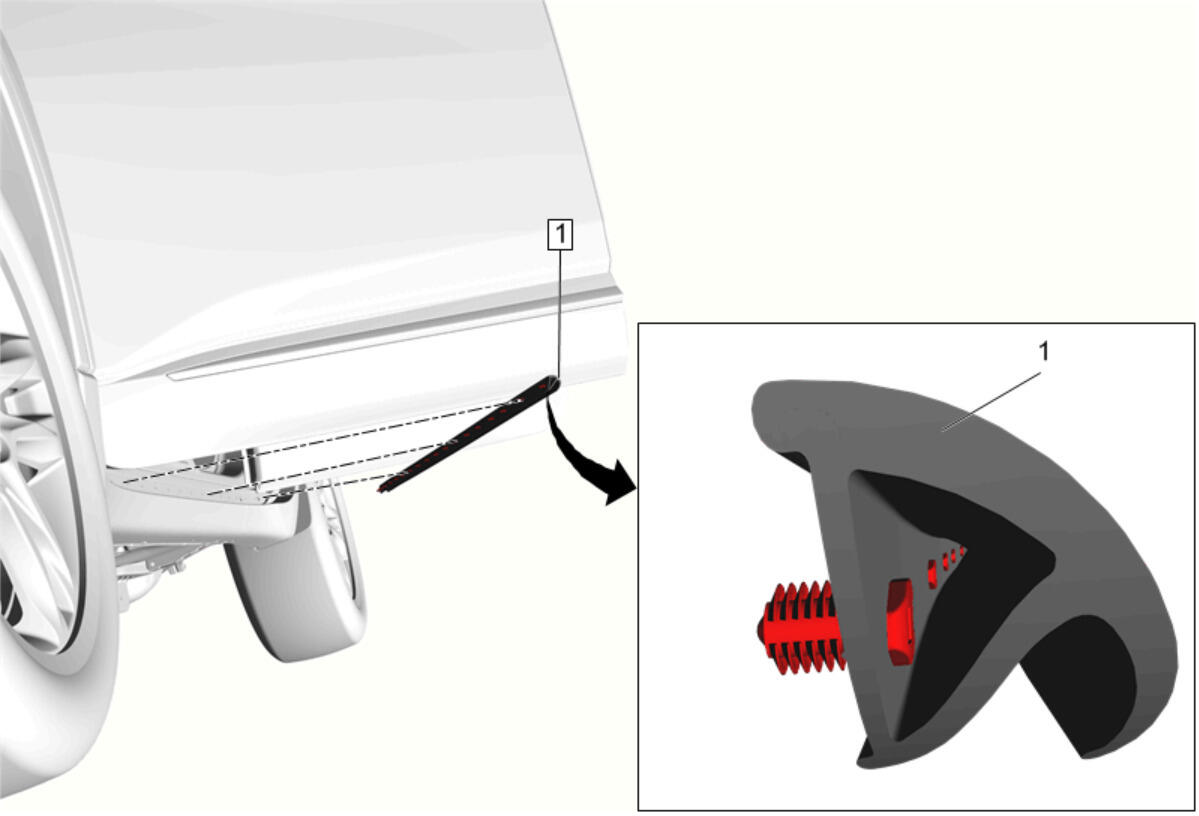

Front and Rear Side Door Lower Auxiliary Weatherstrip

Procedure

Using the appropriate tool, remove the auxiliary weatherstrip retainers from body side outer panel.
Clean the body side outer panel surface before installing the new auxiliary weatherstrip using a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
