Front End Sheet Metal Diagonal Brace Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

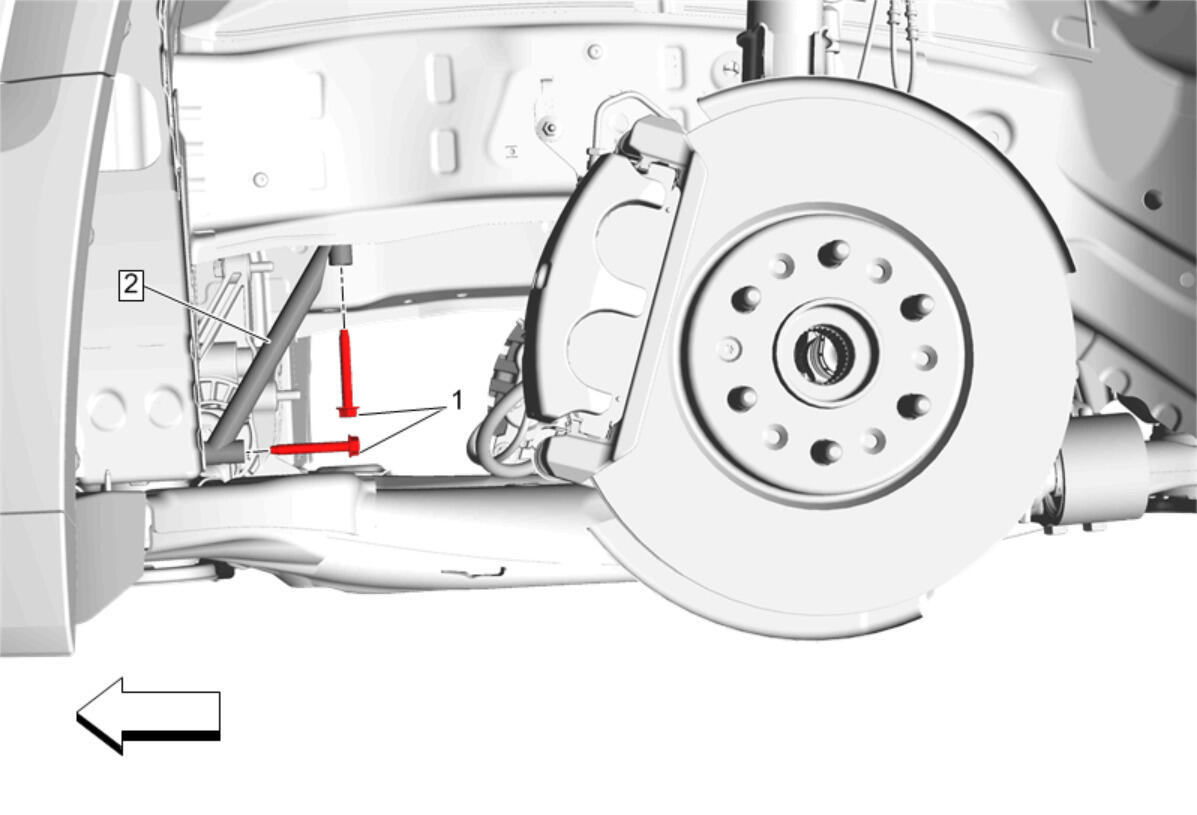

Callout	Component Name
Preliminary Procedure  Front Wheelhouse Liner Replacement
1	Front Compartment Side Rail Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Front End Sheet Metal Diagonal Brace Reinforcement
