X160 Engine Harness to Fuel Injector Harness (L5Q)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

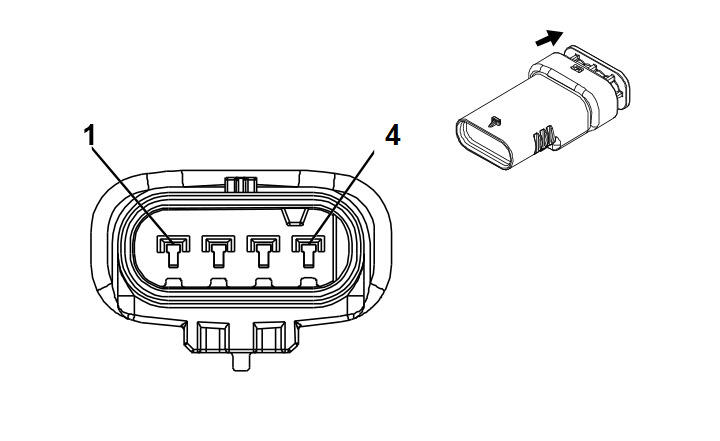

Connector Part Information
- Harness Type: Engine
- OEM Connector: 10010346
- Service Connector: 13587299
- Description: 4-Way F 1.2 Multilock Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Fuel Injector
- OEM Connector: 10013906
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2 Multilock Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1 |
VT/BU |
5291 |
I |
|
Powertrain Main Relay Fused Supply 2 |
1 |
1 |
VT/BU |
5291 |
II |
|
| 2 |
0.5 |
GN/YE |
1744 |
I |
- |
Fuel Injector 1 Control |
2 |
0.5 |
GN/YE |
1744 |
II |
- |
| 3 |
0.5 |
YE/WH |
1745 |
I |
- |
Fuel Injector 2 Control |
3 |
0.5 |
YE/WH |
1745 |
II |
- |
| 4 |
0.5 |
BN/VT |
1746 |
I |
- |
Fuel Injector 3 Control |
4 |
0.5 |
BN/VT |
1746 |
II |
- |
