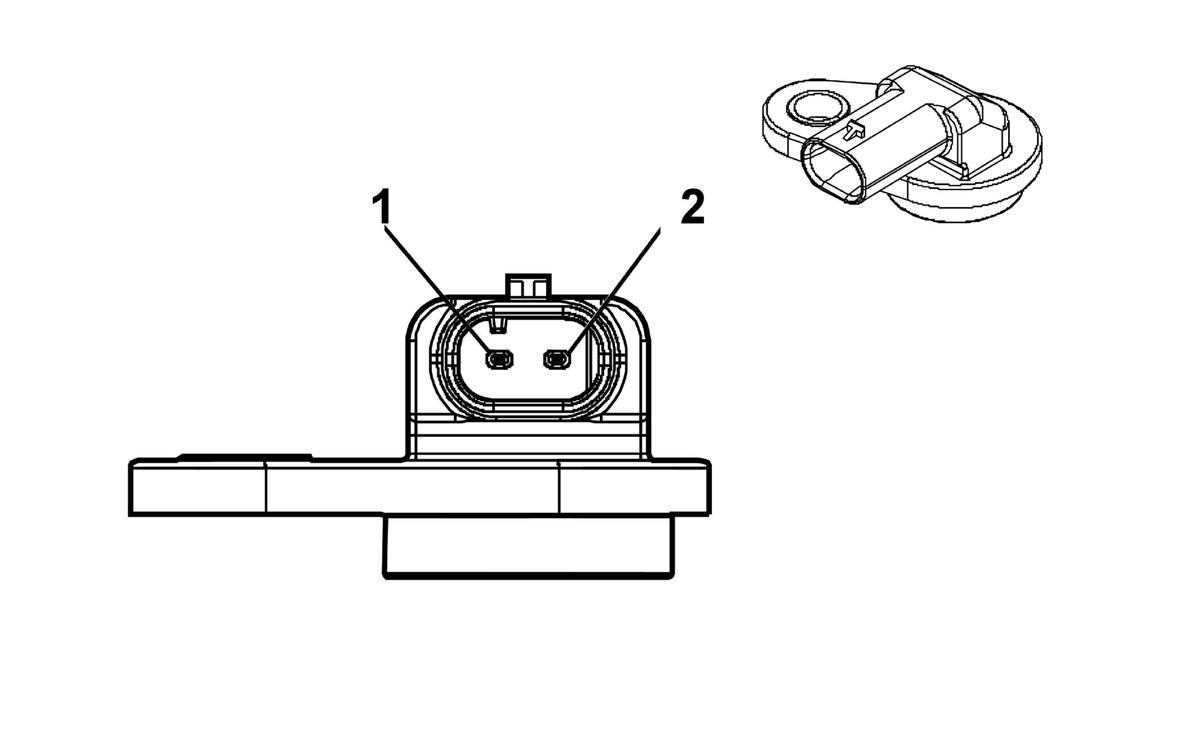

X102 Engine Harness to Engine Oil Control Solenoid Jumper Harness (L5Q)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 1-2296694-1
- Service Connector: 19366858
- Description: 2-Way F 1.2 MCON Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Engine Oil Control Solenoid Jumper
- OEM Connector: 12656691
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BU |
5293 |
I |
- |
Powertrain Main Relay Fused Supply 4 |
1 |
0.5 |
VT/BU |
5293 |
II |
- |
| 2 |
0.5 |
BU |
179 |
I |
- |
Engine Oil Pump Control |
2 |
0.5 |
BU |
179 |
II |
- |
