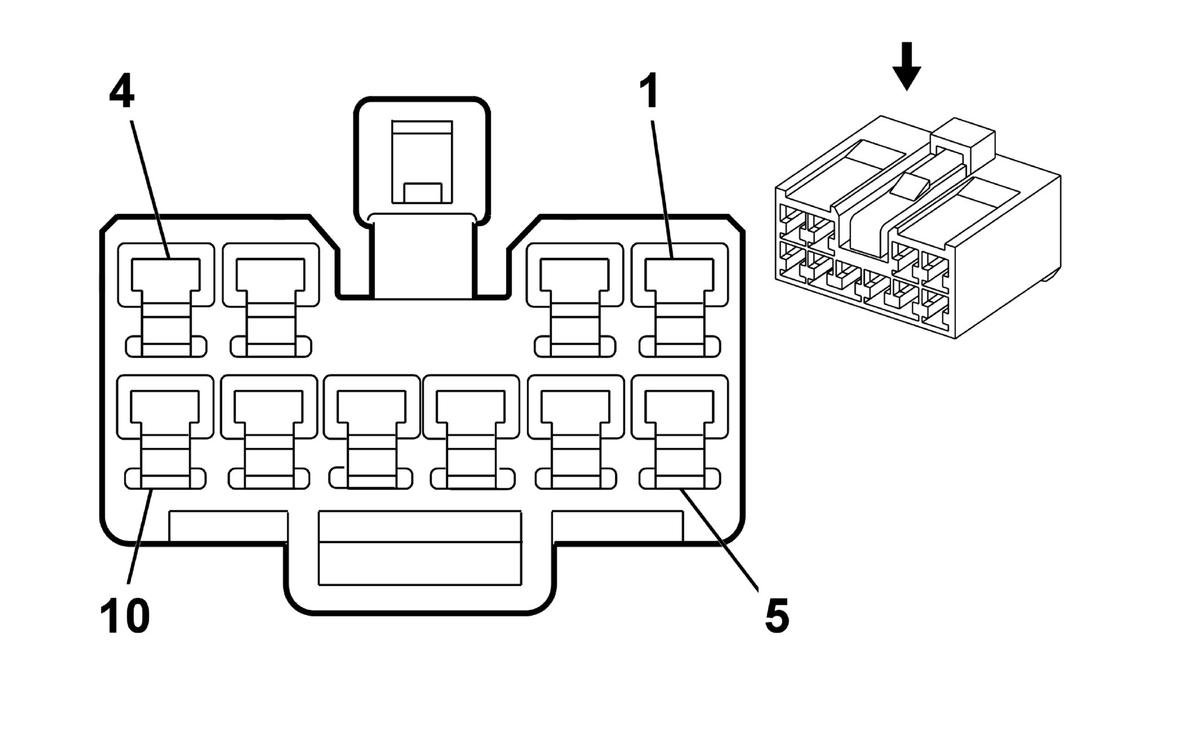

S26 Hazard Warning Switch
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: MG610056
- Service Connector: 13584379
- Description: 10-Way F 090 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13587428 |
J-35616-18 (BK) |
J-38125-553 |
7116-1180 |
Yazaki 11 |
C/E |
C |
| II |
19331707 |
J-35616-18 (BK) |
J-38125-553 |
7116-1180 |
Yazaki 11 |
C/E |
C |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GY/YE |
7543 |
Hazard Warning Indicator LED Dimming Signal |
II |
- |
| 3 |
0.5 |
BK |
750 |
Ground 7 |
I |
- |
| 4 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
BK |
750 |
Ground 7 |
I |
- |
| 8 |
0.35 |
GN/WH |
111 |
Hazard Warning Switch Signal |
II |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
