E4AC Park/Daytime Running Lamp - Left (SBW+T3N+TUJ)
 Courtesy of GENERAL MOTORS COMPANY
|

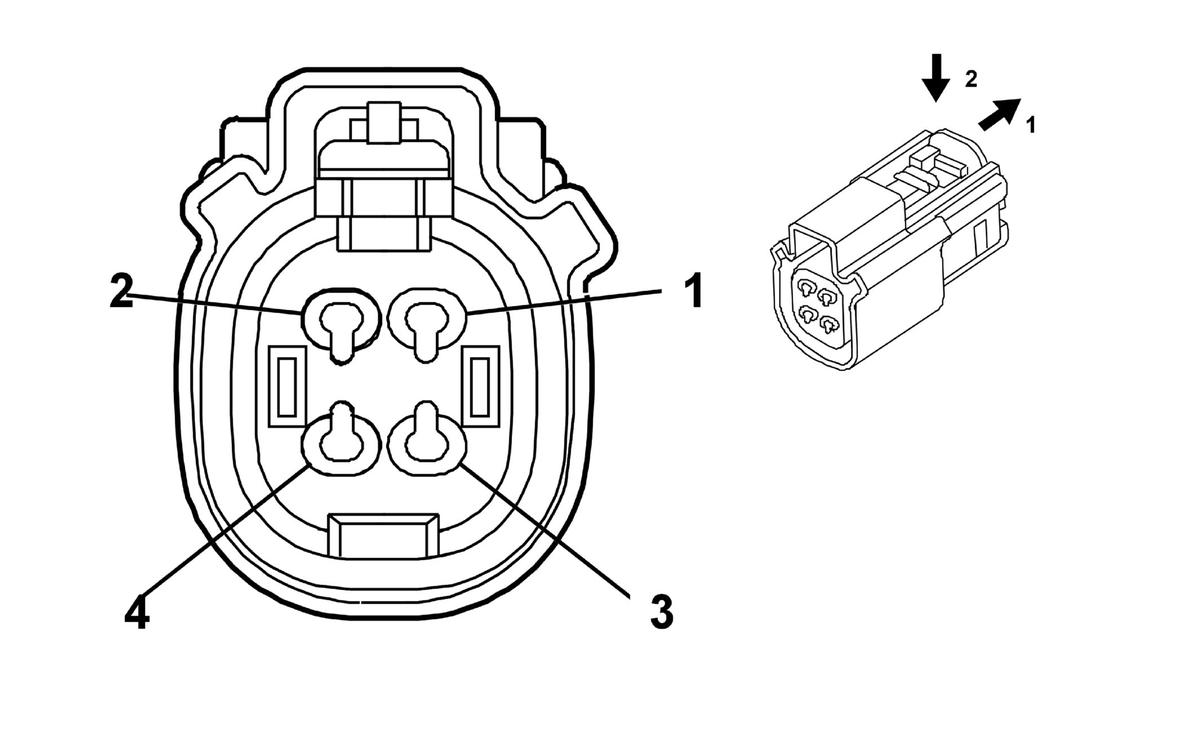

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 33472-4044
- Service Connector: 19370714
- Description: 4-Way F 150 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
50 |
Ground |
I |
SBW+T3N+TUJ-WJY |
| 2 |
0.5 |
GY/BU |
7538 |
Left Front DRL Control |
I |
SBW+T3N+TUJ-WJY |
| 3 |
0.5 |
BK |
50 |
Ground |
I |
SBW+T3N+TUJ-WJY |
| 4 |
0.5 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
I |
SBW+T3N+TUJ-WJY |
