Engine Harness Routing - 1.4L Rear (LUV)
 Courtesy of GENERAL MOTORS COMPANY
|

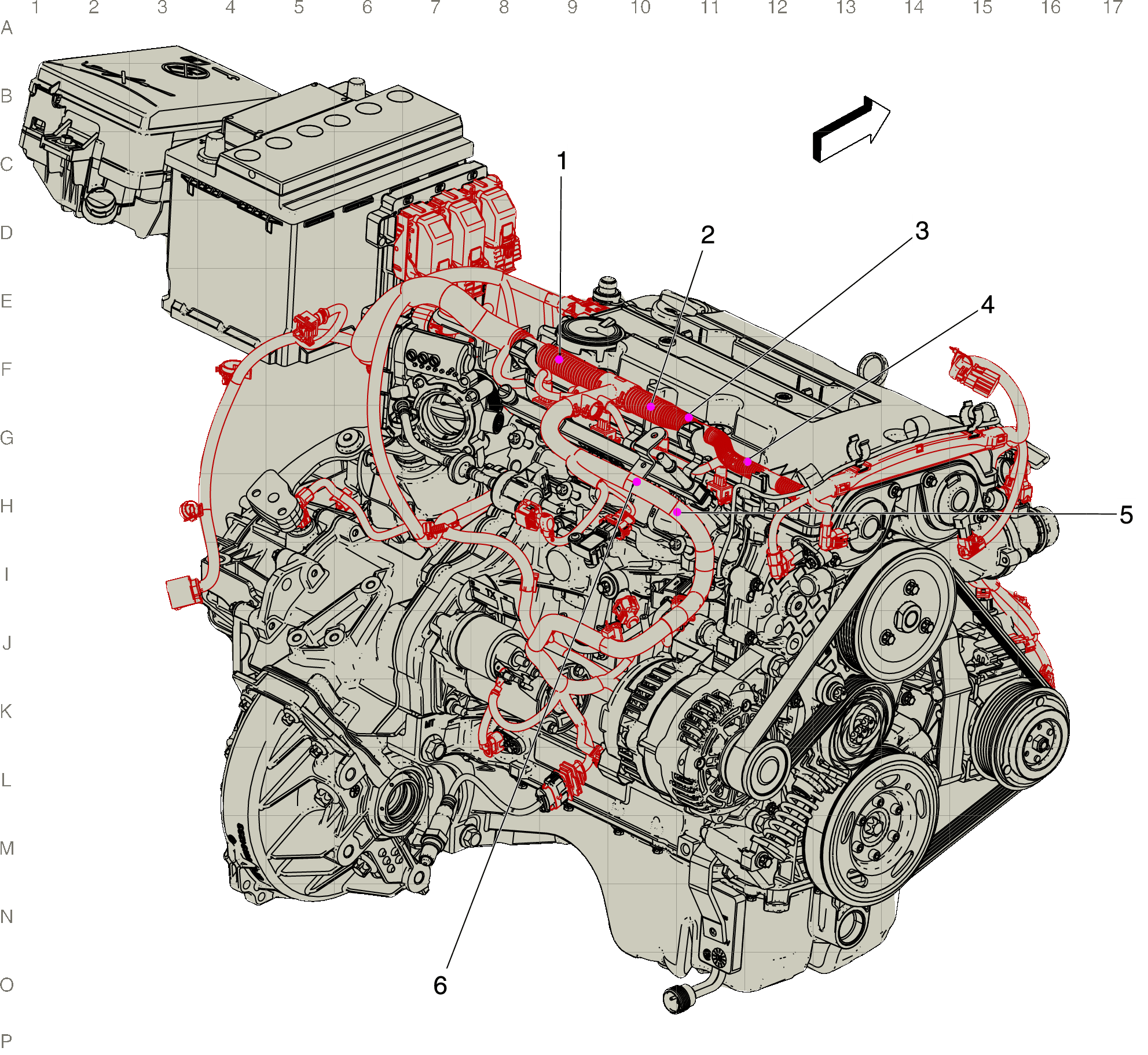

Engine Harness Routing - 1.4L Rear (LUV)
| Harness Name |
Callout |
| J118 Engine Harness |
1 |
| J128 Engine Harness |
2 |
| J127 Engine Harness |
3 |
| J132 Engine Harness |
4 |
| J117 Engine Harness |
5 |
| J133 Engine Harness |
6 |
