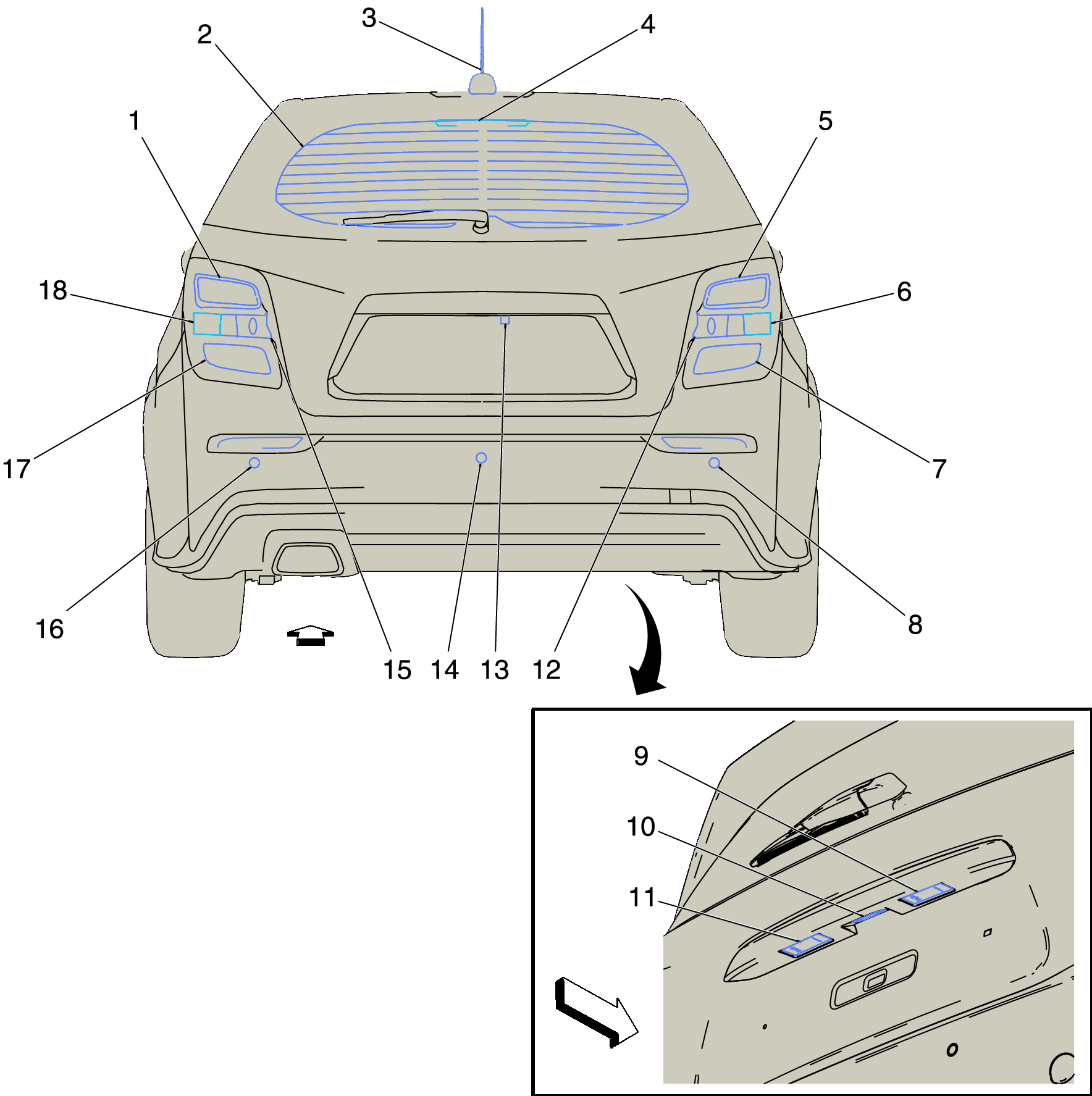

Rear of Vehicle Components (Hatchback)
Rear of Vehicle Components (Hatchback)
| Component Name | Callout |
|---|---|
| E5AA Tail/Stop Lamp - Left | 1 |
| E18 Rear Defogger Grid E18 Rear Defogger Grid X1 (Hatchback) , E18 Rear Defogger Grid X1 (Notchback) , E18 Rear Defogger Grid X2 (Hatchback) , and E18 Rear Defogger Grid X2 (Notchback) | 2 |
| T4M Radio Antenna T4M Radio Antenna (U71/UBA) | 3 |
| E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp (Hatchback) , E6 Center High Mounted Stop Lamp (Notchback) | 4 |
| E5AB Tail/Stop Lamp - Right | 5 |
| E4RR Turn Signal Lamp - Right Rear | 6 |
| E5F Tail Lamp - Right | 7 |
| B306H Parking Assist Sensor - Rear Right Outer (UD7) B306H Parking Assist Sensor - Rear Right Outer | 8 |
| E7R License Plate Lamp - Right E7R License Plate Lamp - Right | 9 |
| S46B Liftgate Unlatch Switch (Hatchback) S46B Liftgate Unlatch Switch | 10 |
| E7L License Plate Lamp - Left E7L License Plate Lamp - Left | 11 |
| E5B Backup Lamp - Right | 12 |
| B87 Rearview Camera B87 Rearview Camera (Hatchback) , B87 Rearview Camera (Notchback) | 13 |
| B306J Parking Assist Sensor - Rear Middle (UD7) B306J Parking Assist Sensor - Rear Middle | 14 |
| E5A Backup Lamp - Left | 15 |
| B306E Parking Assist Sensor - Rear Left Outer (UD7) B306E Parking Assist Sensor - Rear Left Outer | 16 |
| E5E Tail Lamp - Left | 17 |
| E4LR Turn Signal Lamp - Left Rear | 18 |
