Removal Procedure
Special Tools
- EN-38188 Cylinder Head Broken Bolt Extractor Kit - or equivalent aftermarket tool
- EN-45059 Angle Meter
- EN-36857 Engine Lift Bracket
Equivalent regional tools: Special Tools
- Cooling System Draining and Filling (Static) , or Cooling System Draining and Filling (GE 47716) - Drain
Camshaft Cover (2) - Remove - Camshaft Cover Replacement
- Fuel Pump Replacement - Remove
- Intake Manifold Replacement - Remove
- Exhaust Manifold Replacement (LTG) - Remove

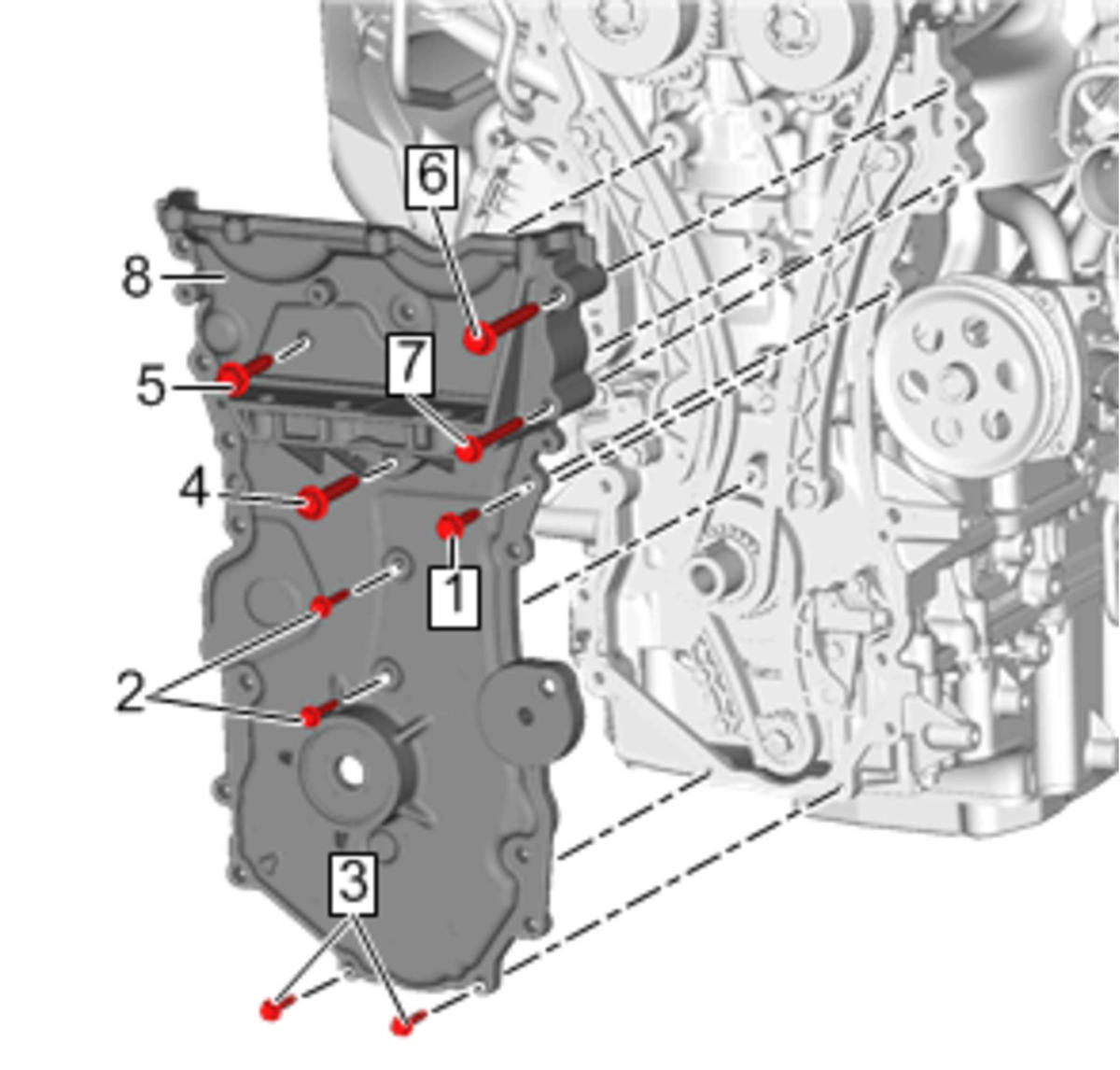

Engine Front Cover (8) - Remove - Engine Front Cover Replacement
- Camshaft Position Actuator and Camshaft Replacement - Intake - Remove
- Camshaft Position Actuator and Camshaft Replacement - Exhaust - Remove

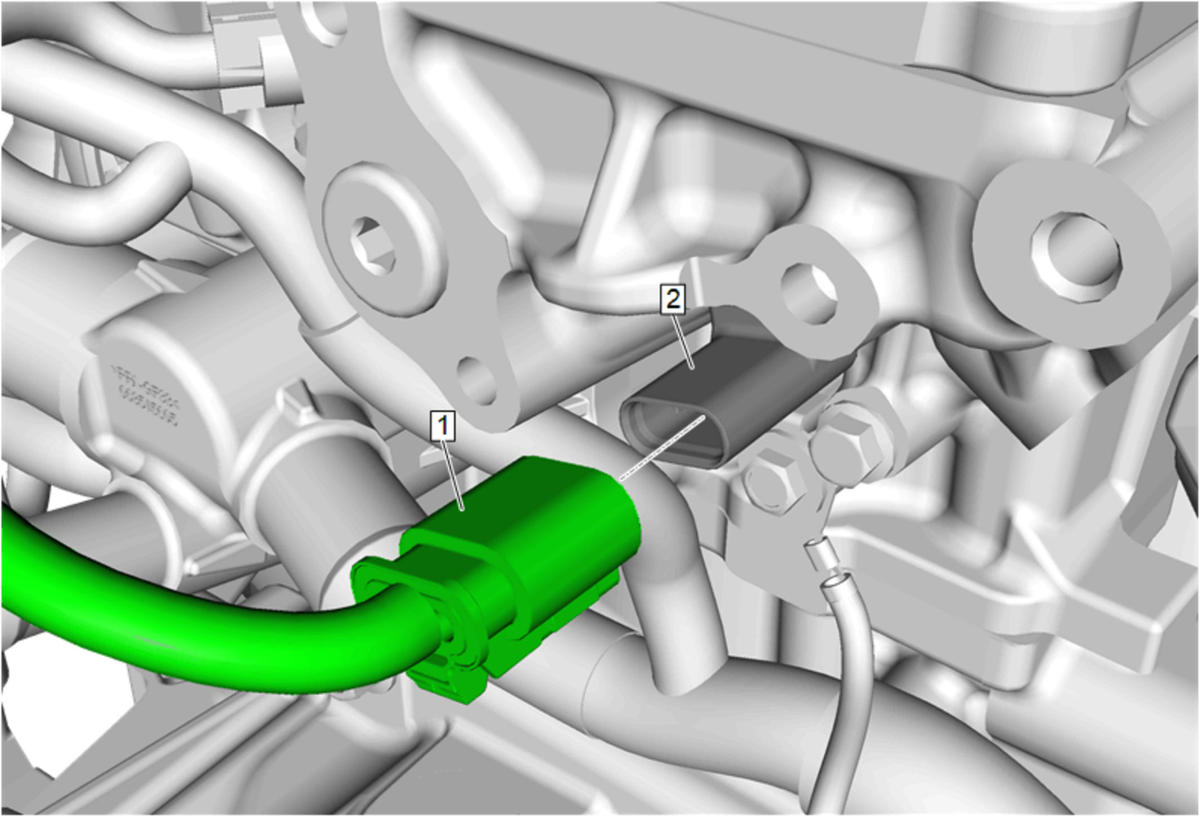

Electrical Connector (1) @Exhaust Camshaft Position Sensor (2) - Disconnect

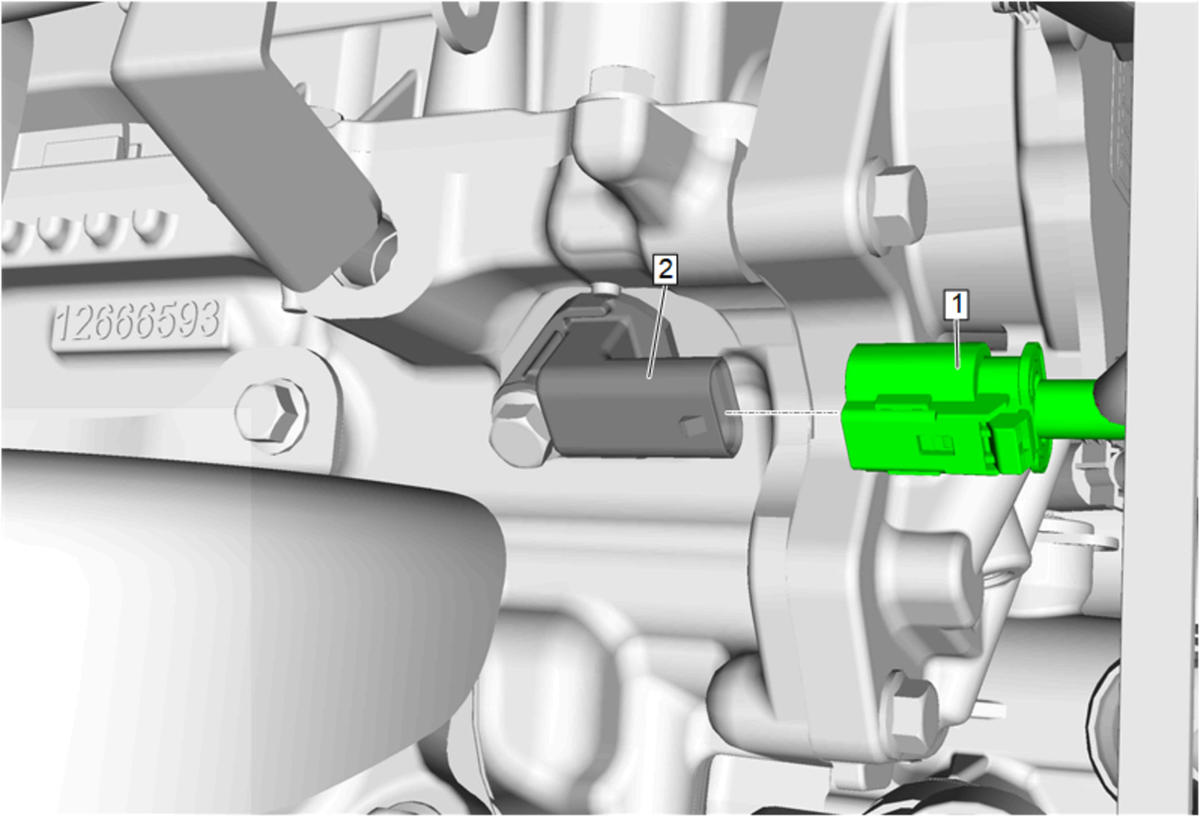

Electrical Connector (1) @Intake Camshaft Position Sensor (2) - Disconnect
- Disconnect all of the hoses from the water outlet. Water Outlet Replacement (LTG)
Engine Wiring Harness Clip Bracket Bolt (1) - Remove

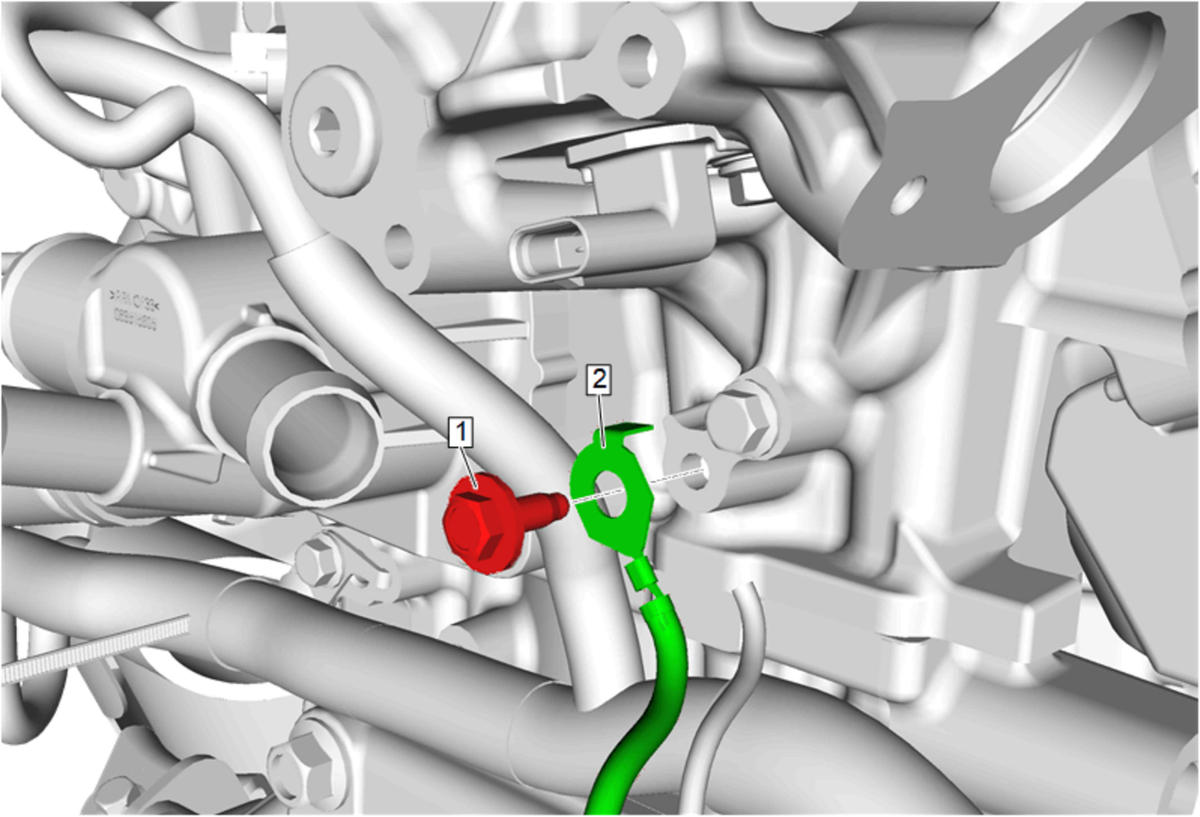

- Ground Cable (2) - Reposition away
Install the EN-36857 Engine Lift Bracket (2) and fastener (1) into the engine block.
- Reposition the engine support fixture lift hook from the engine lift bracket (3) to the EN-36857 Engine Lift Bracket (2)
Cylinder Head Bolt - Remove and DISCARD
- CAUTION:
In order to prevent damage to the valves and injectors during cylinder head removal, set the cylinder head on blocks.
Cylinder Head Bolt (1) - Remove and DISCARD [10x]
- Cylinder Head (2) - Remove
- Cylinder Head Gasket (3) - Remove and DISCARD
- Replace or transfer locating pins as necessary.
- Use the following procedures when cleaning the cylinder head and cylinder block surfaces:
- Be careful not to gouge or scratch the gasket surfaces. Do not gouge or scrape the combustion chamber surfaces. The feel of the gasket surface is important, not the appearance. There will be indentations from the gasket left in the cylinder head after all of the gasket material is removed. These small indentations will be filled in by the new gasket.
- Use a gasket scraper to clean the cylinder head and cylinder block gasket surfaces. Do not scratch or gouge any surface.
- Do not use any other method or technique to clean these gasket surfaces.
- Clean the old sealer/lube and dirt from the bolt holes.
- Clean the bolt holes with a nylon bristle brush.
- When cleaning the cylinder head bolt holes use a suitable commercial spray liquid solvent and compressed air from an extended-tip blow gun to reach the bottom of the holes.
- Remove any broken long cylinder head bolts using the EN 38188 kit.
- If replacing the cylinder head, transfer all parts as necessary. Cylinder Head Disassemble
- Cylinder Head - Clean and inspect - Cylinder Head Cleaning and Inspection
Support the engine as necessary from underneath while repositioning the engine support fixture.
Do not use a tap to clean the cylinder head bolt holes.
Wear safety glasses to avoid injury when using compressed air or any cleaning solvent. Bodily injury may occur if fumes are inhaled or if skin is exposed to chemicals.
