Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Set the park brake.
- Remove the front floor console. Front Floor Console Replacement
- Disconnect the automatic transmission range selector lever cable from the transmission control. Automatic Transmission Range Selector Lever Cable Replacement
- Disconnect the transmission control electrical connector.
Remove the main shaft bolt nut and washer (1) from the transmission control assembly.

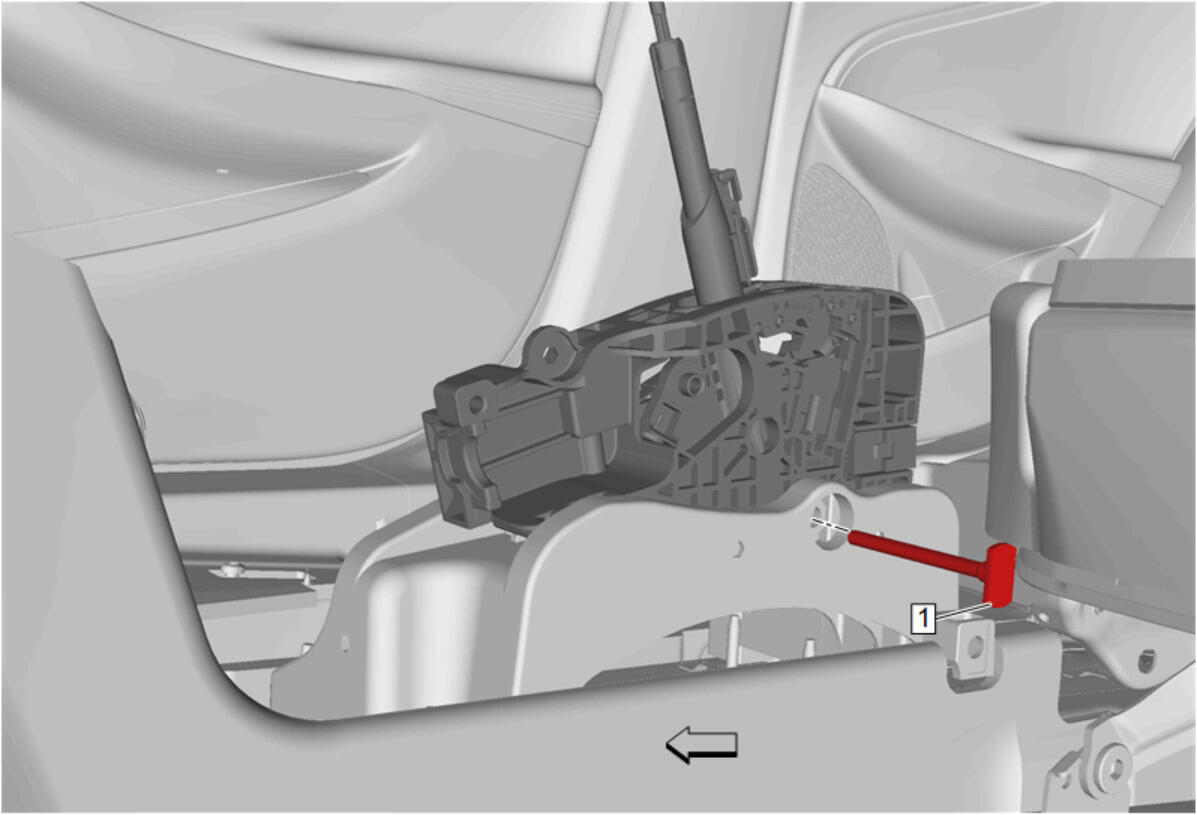

Remove the main shaft bolt (1).
Pull the transmission control assembly (1) rearward and upward to unseat it from the transmission control base.
- Remove the transmission control assembly from the vehicle.
