Front Wheel Drive Shaft Oil Seal Replacement (Left Side)

WARNING: This page is about a different variant/trim than selected.

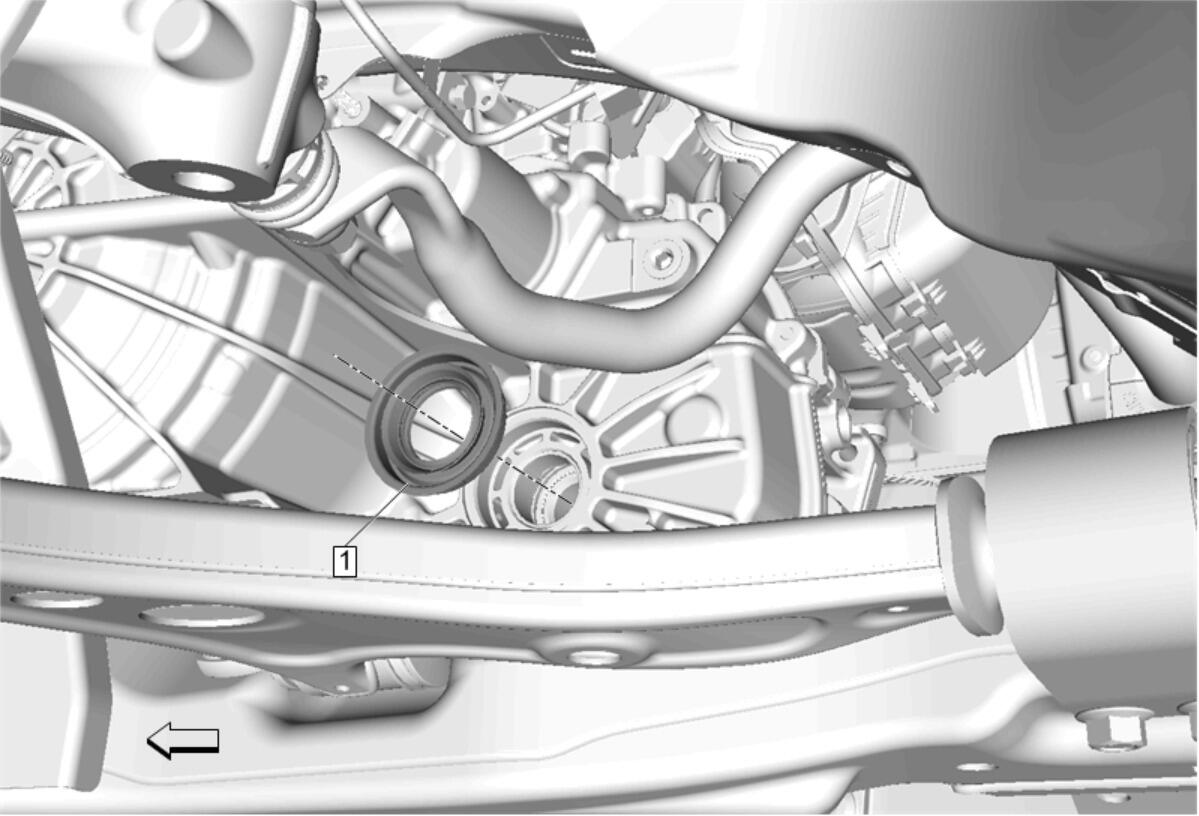

GM4488086

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Wheel Drive Half Shaft Replacement - Left Side (M3E) , or Front Wheel Drive Half Shaft Replacement - Left Side (MRG)

1

Left Front Wheel Drive Shaft Oil Seal

Procedure

For seal removal use GE-6125-1B slide hammer with DT-23129 universal seal remover.
For seal installation use GE-8092 driver handle with DT-47790 seal installer.

Special Tools

DT-23129 Universal Seal Remover
DT-47790 Seal Installer
GE-6125 - 1B Slide Hammer
GE-8092 Driver Handle

For equivalent regional tools, Special Tools
