Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the range selector lever cable to vehicle by installing it from the interior.
  2. GM4932626Courtesy of GENERAL MOTORS COMPANY

    Range Selector Lever Cable (3) @ Transmission Control - Install

    3. CAUTION:

    Fastener Caution

  3. Install the 2 range selector lever cable screws (1, 2) and tighten to 9 N.m (80 lb in).

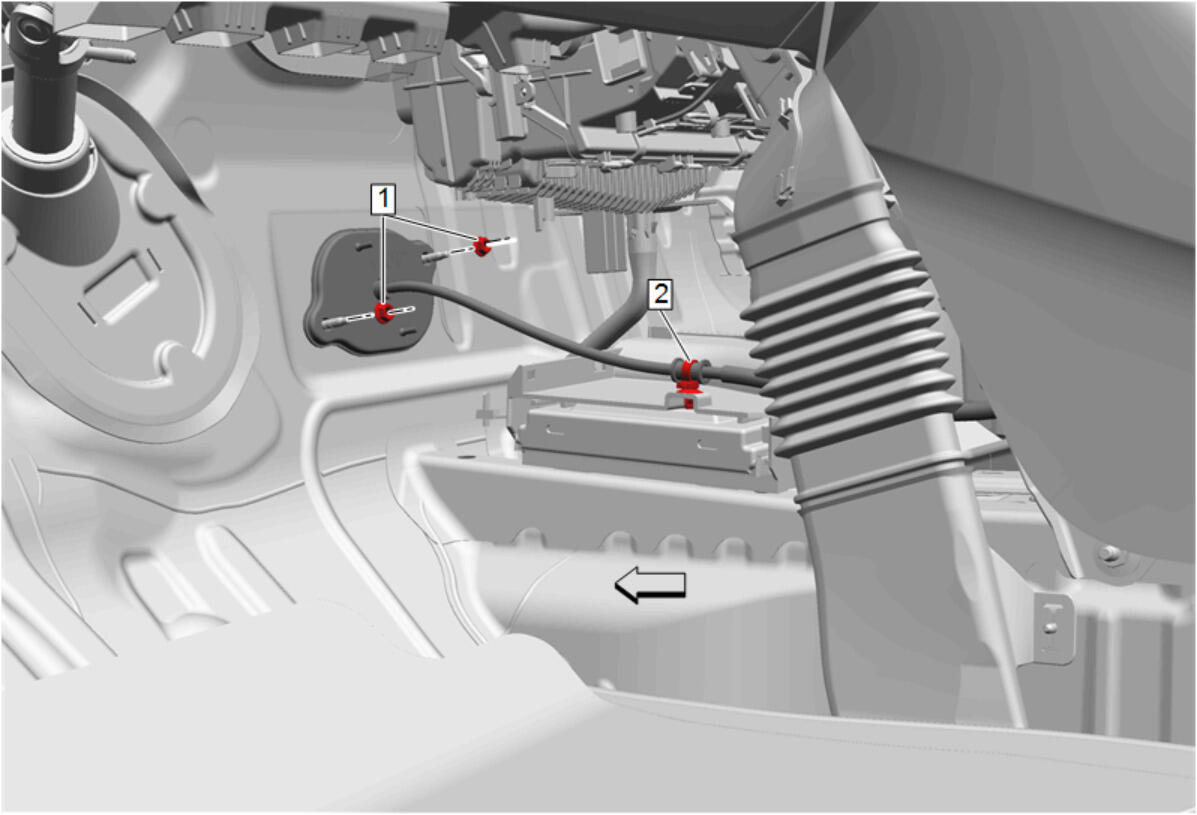

  4. GM5115990Courtesy of GENERAL MOTORS COMPANY

    Transmission Range Selector Lever Cable Grommet Nut (1) - Install and tighten [2x] 6.5 N.m (58 lb in)

  5. Front Floor Console - Install - Front Floor Console Replacement
  6. GM5138546Courtesy of GENERAL MOTORS COMPANY

    Install the range selector lever cable (4) to the range selector lever cable lever.

  7. Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten 9 N.m (80 lb in)
  8. Depress the cable adjustment retainer (3) locking the retainer completely.
  9. Slide the retainer lock (2) rearward to cover the cable adjustment retainer (3).
  10. Range Selector Lever Cable - Adjust - Range Selector Lever Cable Adjustment
  11. Engine Control Module - Install - Engine Control Module Replacement
