Evaporative Emission Canister Solenoid Replacement

WARNING: This page is about a different variant/trim than selected.

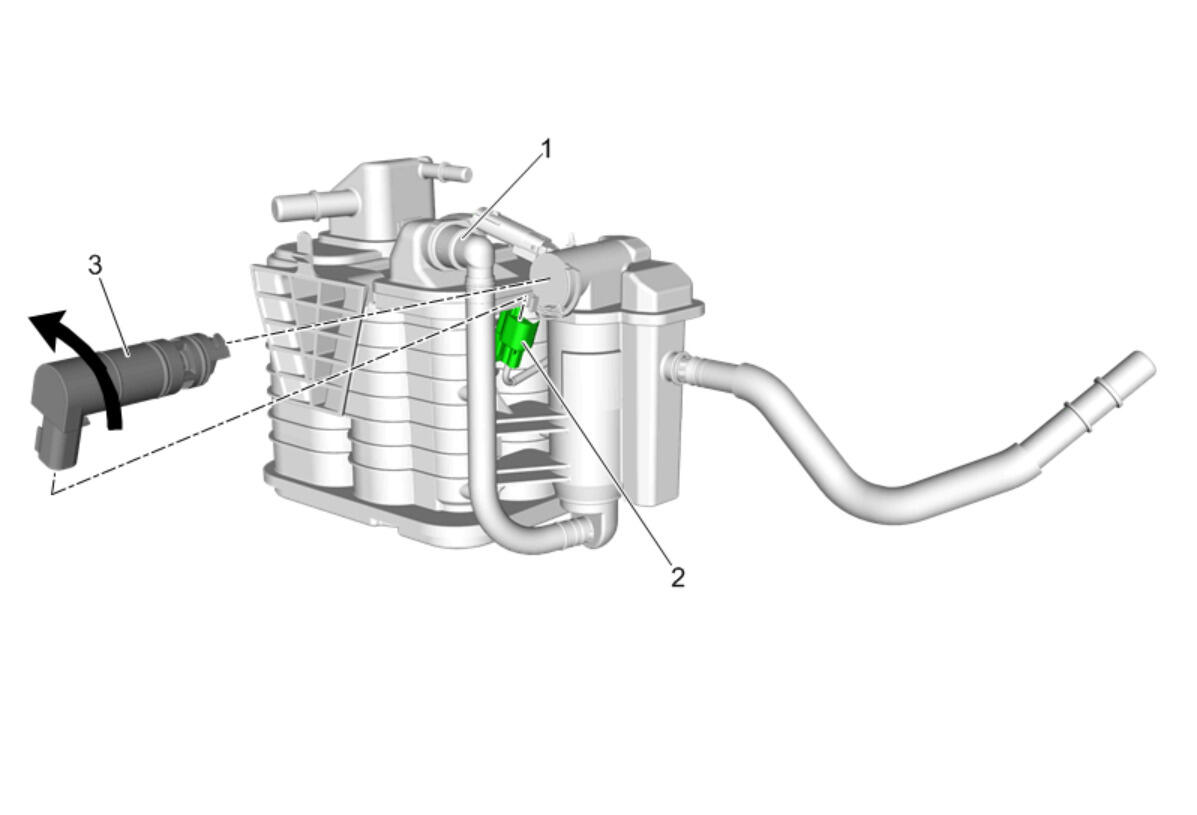

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Evaporative Emission Canister Replacement
1	Scrubber Hose Procedure Disconnect hose from scrubber to canister and reposition hose away from solenoid. Plastic Collar Quick Connect Fitting Service
2	Electrical Connector Procedure Disconnect electrical connector from solenoid.
3	Evaporative Emission Canister Solenoid Procedure Rotate solenoid counter-clockwise 1/4 turn to remove.
