Evaporative Emission Canister Replacement

WARNING: This page is about a different variant/trim than selected.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement

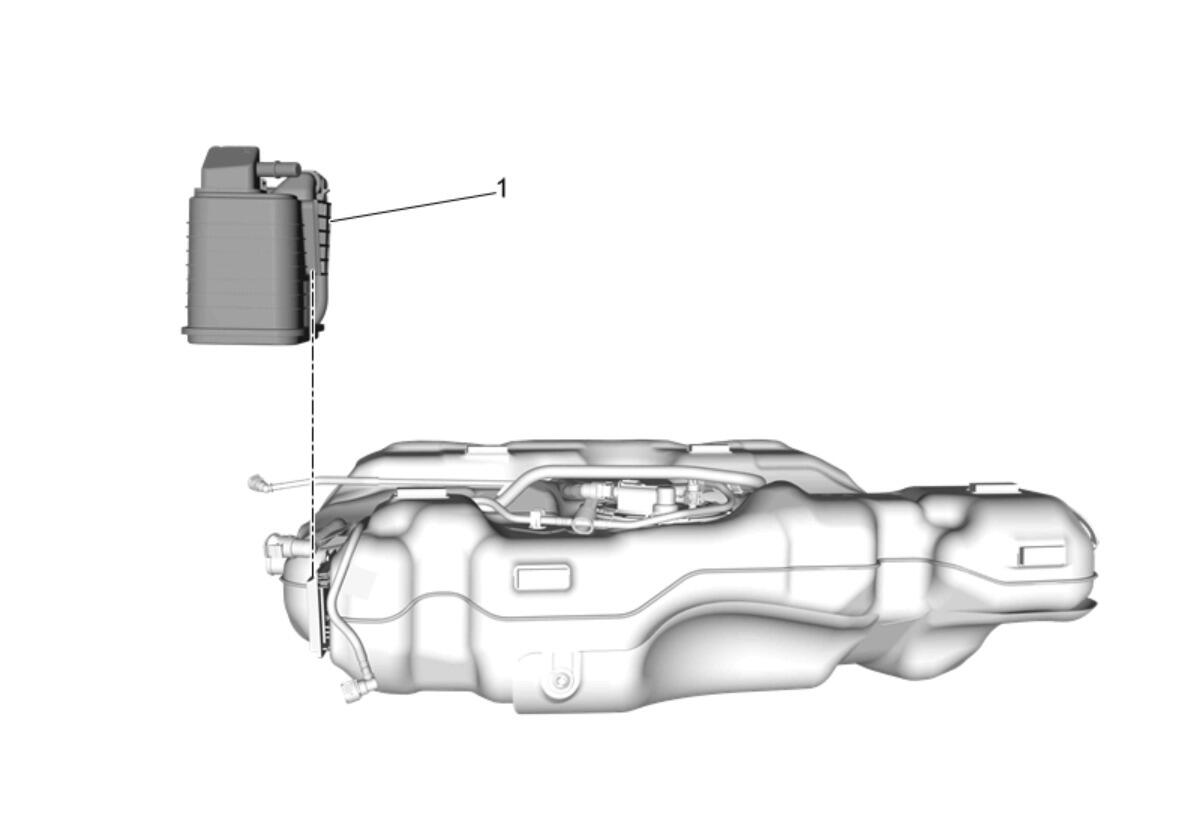

1	Evaporative Emission Canister Procedure Disconnect the electrical connector. Disconnect the quick connect fittings. Plastic Collar Quick Connect Fitting Service Release the retaining tabs.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Fuel Tank Replacement

Evaporative Emission Canister

Procedure

Disconnect the electrical connector.
Disconnect the quick connect fittings. Plastic Collar Quick Connect Fitting Service
Release the retaining tabs.
