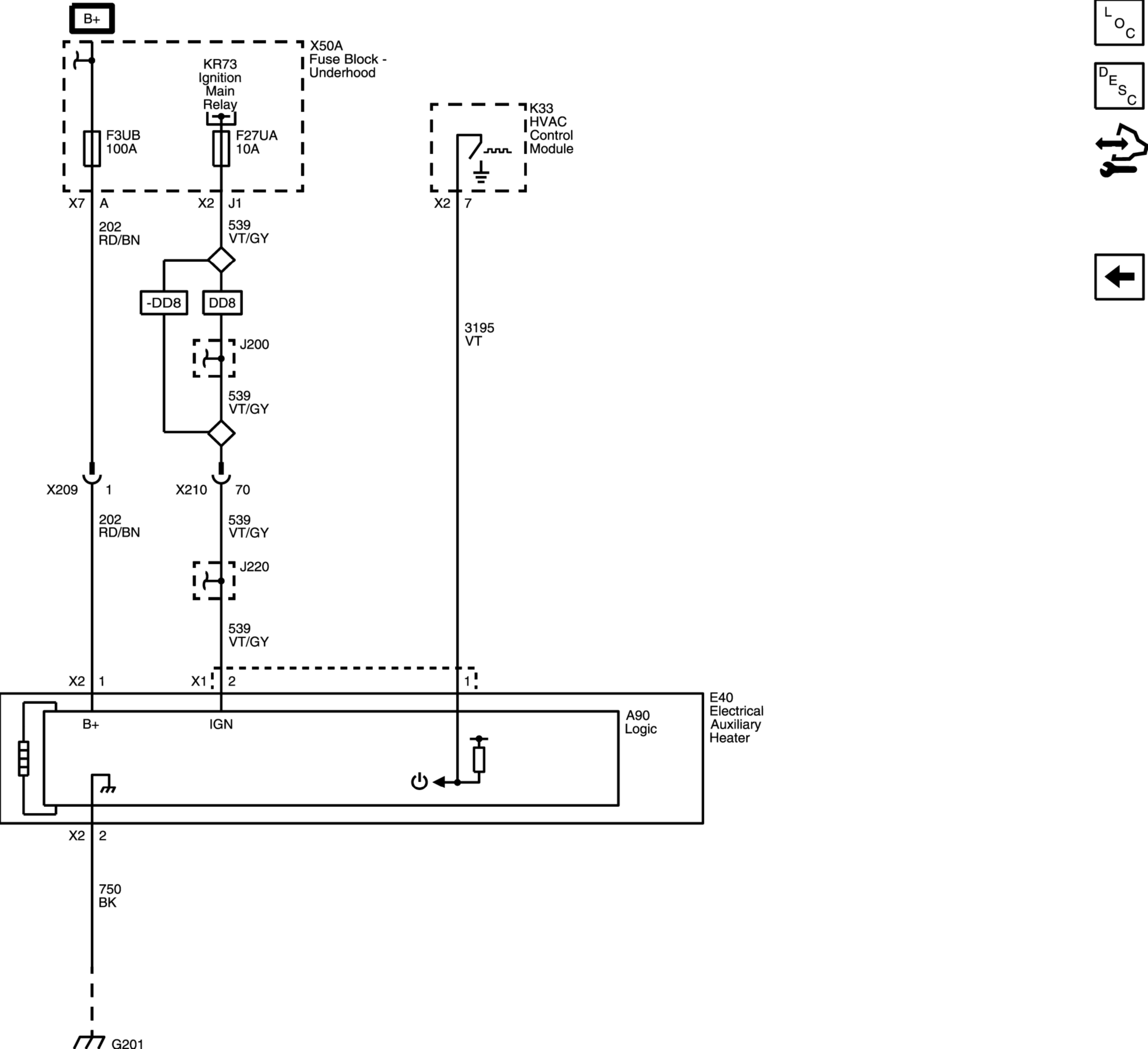

Auxiliary Heater (C32)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
GM4999371Courtesy of GENERAL MOTORS COMPANY
