Mode Valve Actuator Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

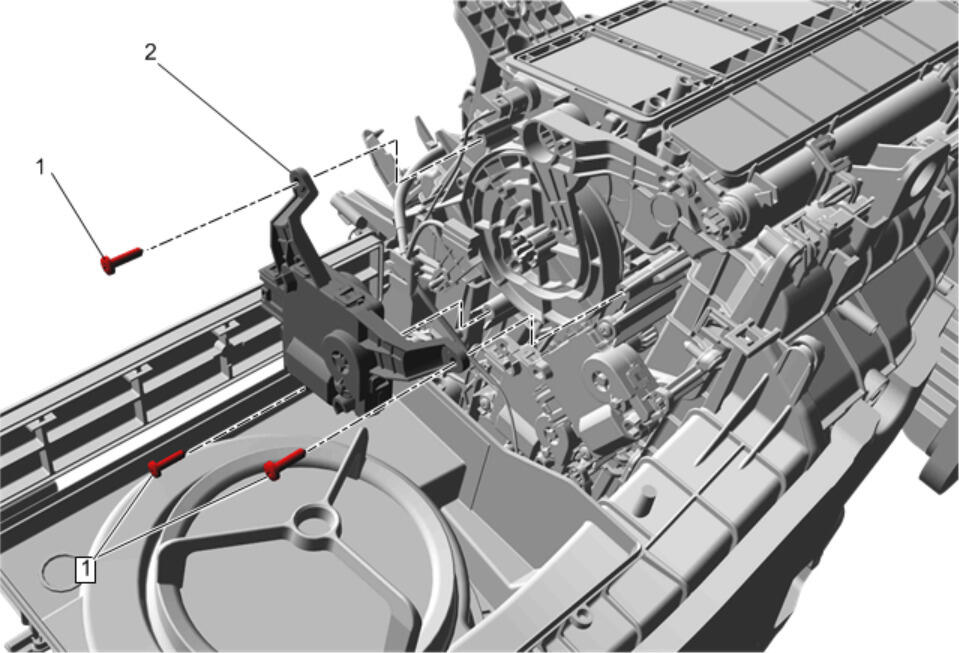

Callout	Component Name
Preliminary Procedure Air Inlet Housing Replacement
1	Mode Valve Actuator Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 1.0 N.m (9 lb in)
2	Mode Valve Actuator Procedure Disconnect the electrical connector. Perform the actuator calibration procedure. Actuator Recalibration

Callout

Component Name

Preliminary Procedure
Air Inlet Housing Replacement

Mode Valve Actuator Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
1.0 N.m (9 lb in)

Mode Valve Actuator

Procedure

Disconnect the electrical connector.
Perform the actuator calibration procedure. Actuator Recalibration
