Air Inlet Valve Actuator Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

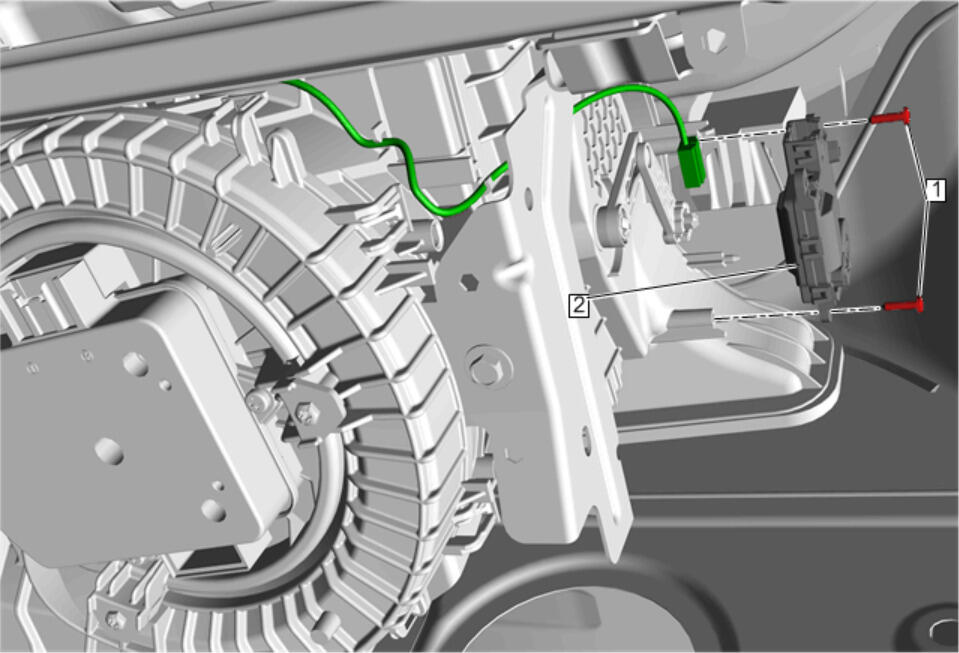

Callout	Component Name
Preliminary Procedure Radio Bracket Replacement
1	Air Inlet Valve Actuator Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 1.0 N.m (9 lb in)
2	Air Inlet Valve Actuator Procedure Disconnect the electrical connector. Transfer components as necessary. Perform the actuator calibration procedure. Actuator Recalibration

Callout

Component Name

Preliminary Procedure
Radio Bracket Replacement

Air Inlet Valve Actuator Fastener [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
1.0 N.m (9 lb in)

Air Inlet Valve Actuator

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Perform the actuator calibration procedure. Actuator Recalibration
