Inside Rearview Mirror Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement

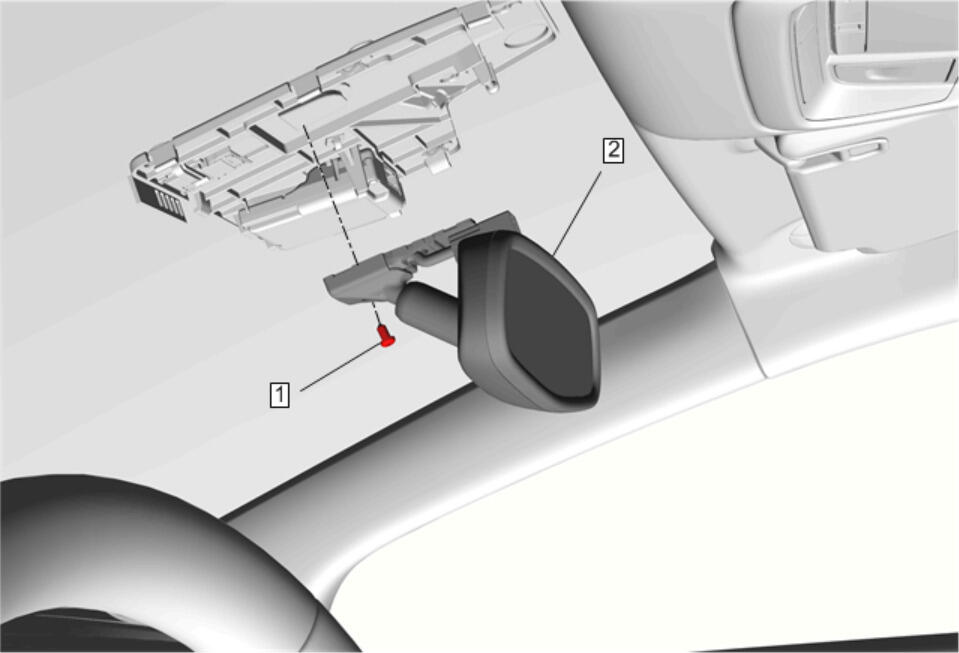

1	Inside Rearview Mirror Set Screw CAUTION: Refer to Fastener Caution . Procedure Loosen the set screw located at the base of the mirror. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror Procedure Slide the mirror off the rearview mirror button. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Windshield Multifunction Sensor Mount Bracket Cover Replacement

Inside Rearview Mirror Set Screw

CAUTION:

Refer to Fastener Caution .

Procedure
Loosen the set screw located at the base of the mirror.
Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror

Procedure

Slide the mirror off the rearview mirror button.
Disconnect the electrical connector.
