Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

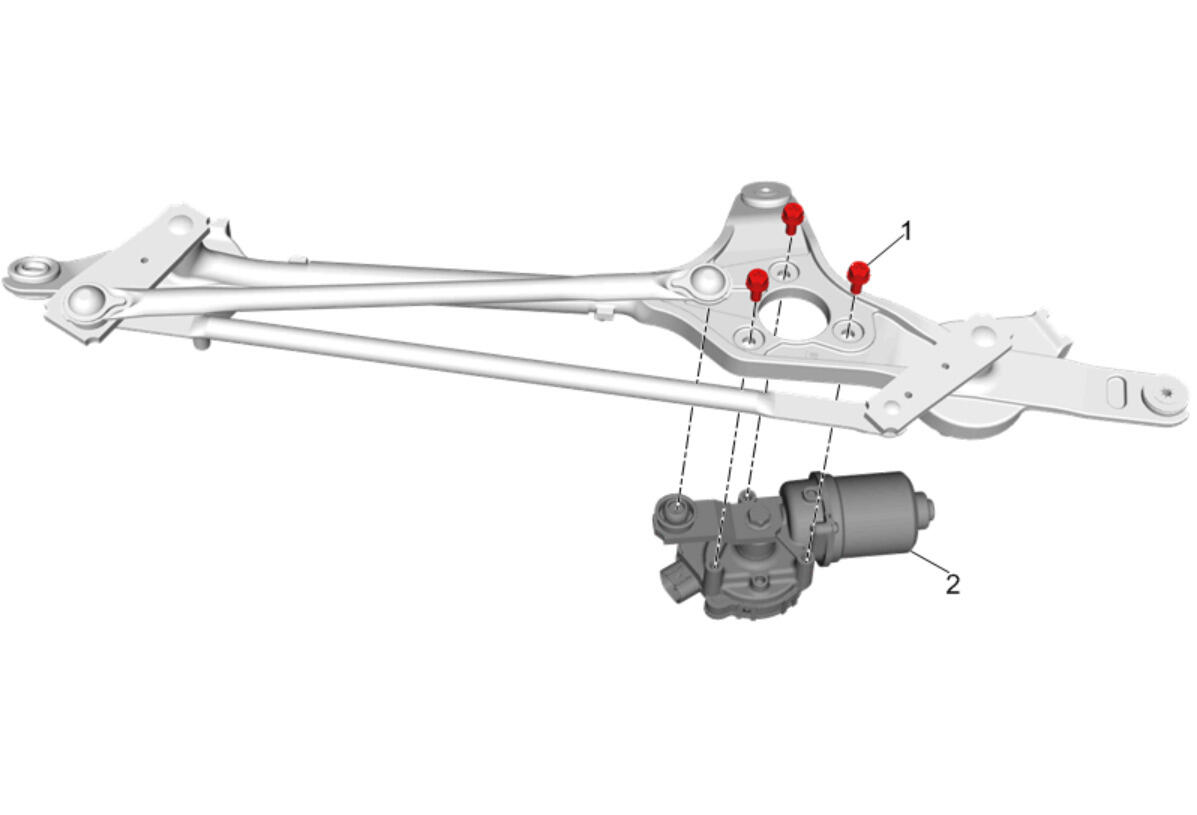

GM4210584Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Windshield Wiper Transmission Replacement
1 Windshield Wiper Motor Bolt [2x]
Tighten
8 N.m (71 lb in)
2 Windshield Wiper Motor

Procedure

  1. Using the J 39232  separator remove the windshield wiper transmission drive link from the wiper motor crank arm ball stud.
  2. Remove the windshield wiper motor from the windshield wiper transmission.
  3. Position the new windshield wiper motor to the windshield wiper transmission.
  4. Using the J 39529  installer install the windshield wiper transmission drive link onto the wiper motor crank arm ball stud.
NOTE:

Apply a small amount of grease to the inner cup on the transmission links to aid in installation.

Special Tools

  • J-39232  Wiper Linkage Separator
  • J-39529  Wiper Linkage Installer

For equivalent regional tools, refer to Special Tools .
