Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

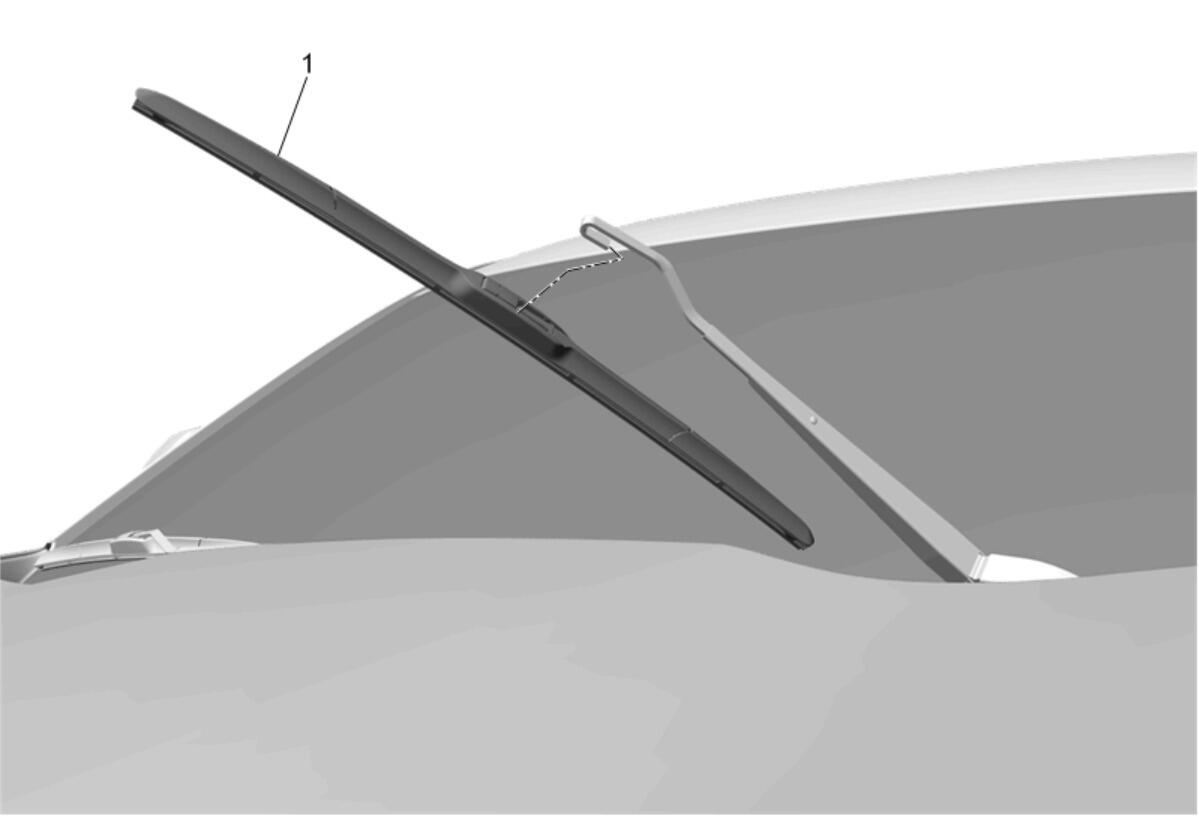

Callout	Component Name
1	Windshield Wiper Blade Procedure Lift the windshield wiper arm from the windshield. Disengage the windshield wiper blade lock from the windshield wiper arm. Release the retention tab securing the windshield wiper blade to the windshield wiper arm. Pull the windshield wiper blade from the windshield wiper arm. Remove the windshield wiper blade.

Callout

Component Name

Windshield Wiper Blade

Procedure

Lift the windshield wiper arm from the windshield.
Disengage the windshield wiper blade lock from the windshield wiper arm.
Release the retention tab securing the windshield wiper blade to the windshield wiper arm.
Pull the windshield wiper blade from the windshield wiper arm.
Remove the windshield wiper blade.
