Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the appropriate front wheelhouse liner: For left side, refer to Front Wheelhouse Liner Replacement - Left Side . For right side, refer to Front Wheelhouse Liner Replacement - Right Side (LFV, LTG)Front Wheelhouse Liner Replacement - Right Side (LKN) . Place a clean suitable drain pan under the windshield washer solvent container level sensor area to recover the windshield washer solvent when the level sensor is disconnected. Disconnect the electrical connector.

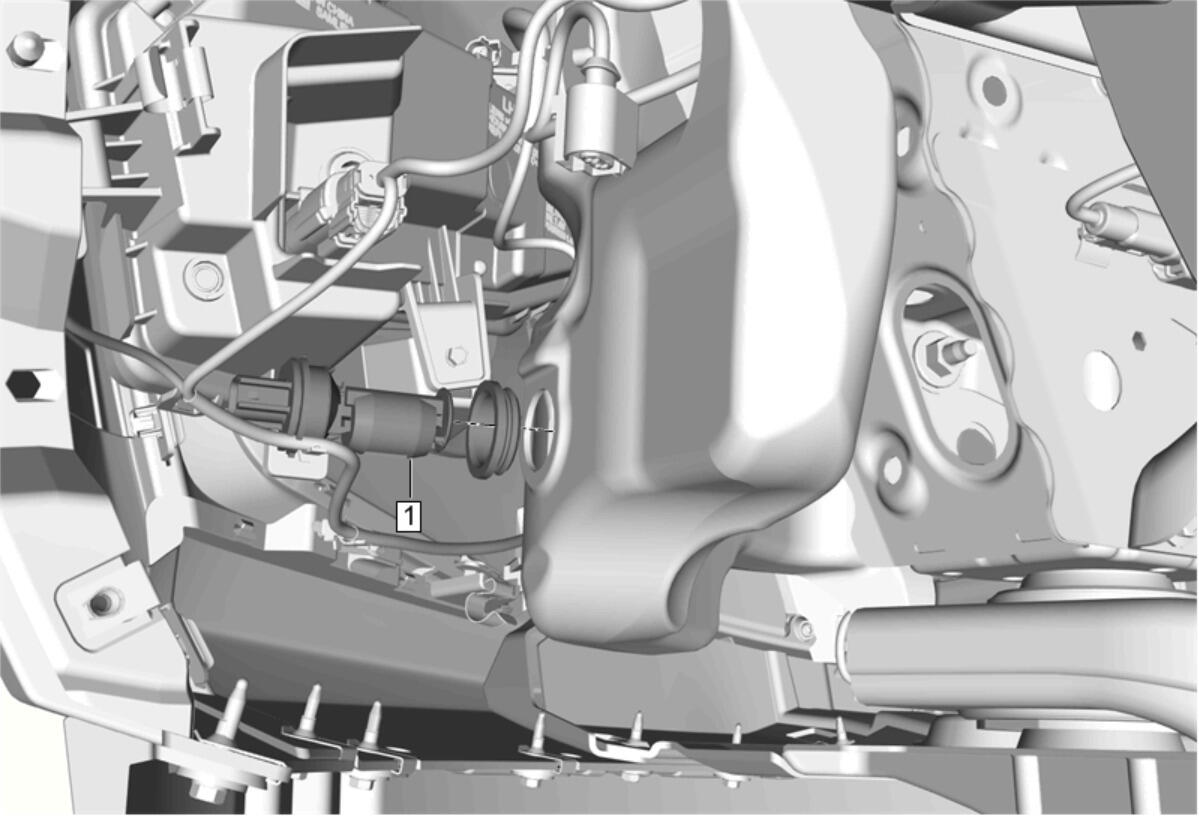

1	Windshield Washer Solvent Container Level Sensor Procedure Using appropriate tools, place under each side of the level sensor, twist and lift in opposite directions to disengage the level sensor from the windshield washer solvent container and grommet. Remove and DISCARD the grommet. Install a NEW windshield washer solvent container level sensor grommet.

Callout

Component Name

Preliminary Procedures

Remove the appropriate front wheelhouse liner:
- For left side, refer to Front Wheelhouse Liner Replacement - Left Side .
- For right side, refer to Front Wheelhouse Liner Replacement - Right Side (LFV, LTG)Front Wheelhouse Liner Replacement - Right Side (LKN) .
Place a clean suitable drain pan under the windshield washer solvent container level sensor area to recover the windshield washer solvent when the level sensor is disconnected.
Disconnect the electrical connector.

Windshield Washer Solvent Container Level Sensor

Procedure

Using appropriate tools, place under each side of the level sensor, twist and lift in opposite directions to disengage the level sensor from the windshield washer solvent container and grommet. Remove and DISCARD the grommet.
Install a NEW windshield washer solvent container level sensor grommet.
