Battery Auxiliary Tray Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

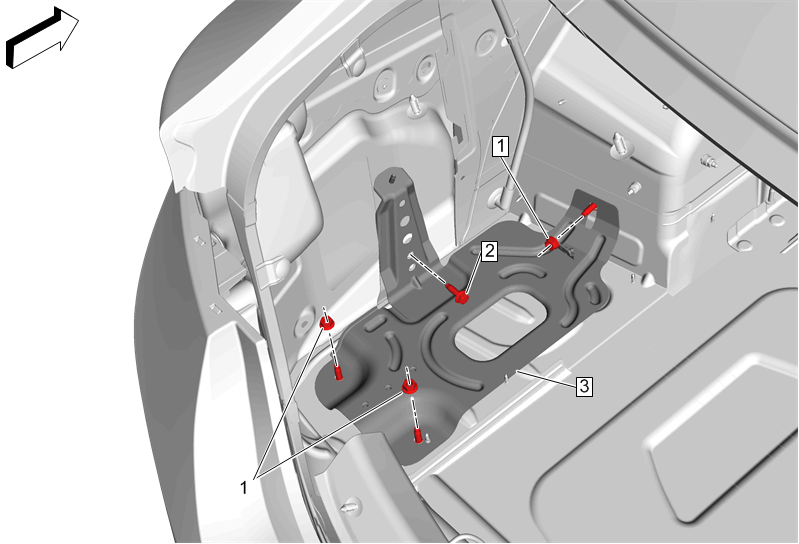

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the battery. Battery Replacement (HP4) |
|
| 1 | Battery Tray Nut [3x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Battery Tray Bolt Tighten 22 N.m (16 lb ft) |
| 3 | Battery Auxiliary Tray |
