Rear Compartment Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

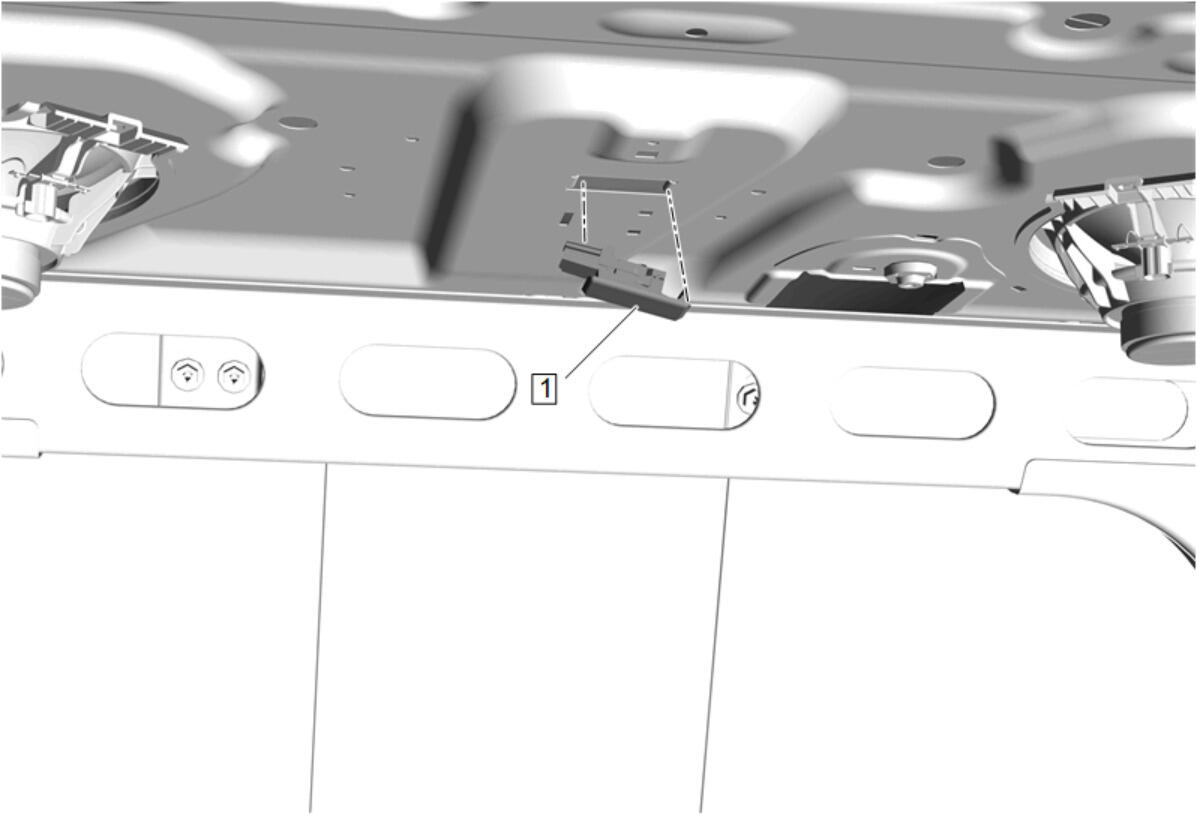

| Callout |
Component Name |
| 1 |
Rear Compartment Courtesy Lamp Procedure
- Open the rear compartment lid.
- Using a flat-bladed plastic trim tool, release the retaining tab.
- Disconnect the electrical connector.
|
