Rear Combination Lamp Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

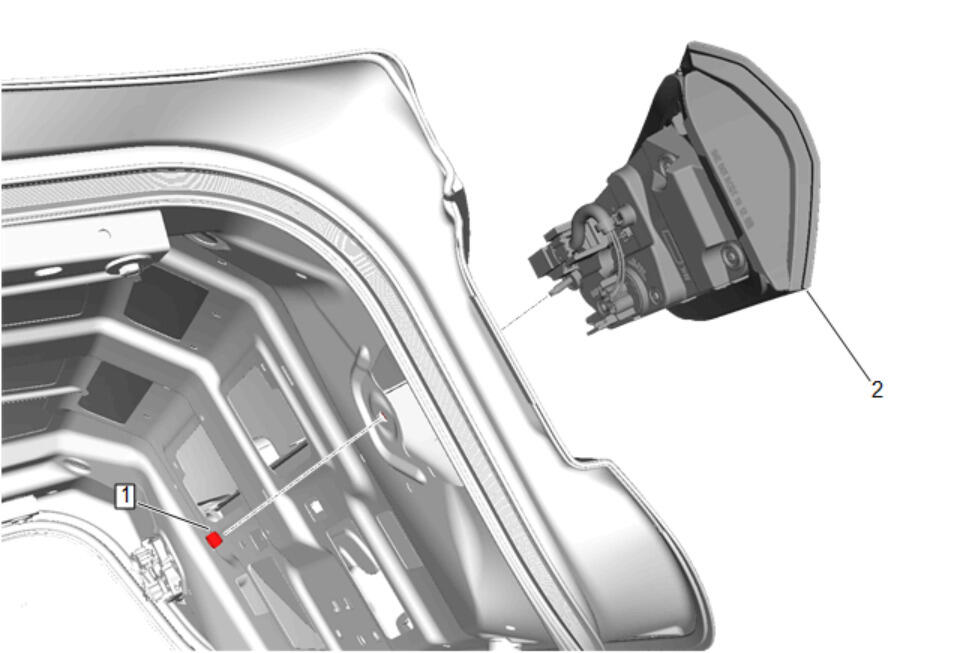

Callout	Component Name
Preliminary Procedure Rear Compartment Lid Inner Panel Trim Replacement
1	Rear Combination Lamp Nut[1x] CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Rear Combination Lamp Procedure Disconnect the electrical connector. Release the retaining tab. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Rear Compartment Lid Inner Panel Trim Replacement

Rear Combination Lamp Nut[1x]

CAUTION:

Refer to Fastener Caution .

Tighten
4.7 N.m (42 lb in)

Rear Combination Lamp

Procedure

Disconnect the electrical connector.
Release the retaining tab.
Transfer components as necessary.
