Low Beam Headlamp Bulb Replacement - Left Side (LFV)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

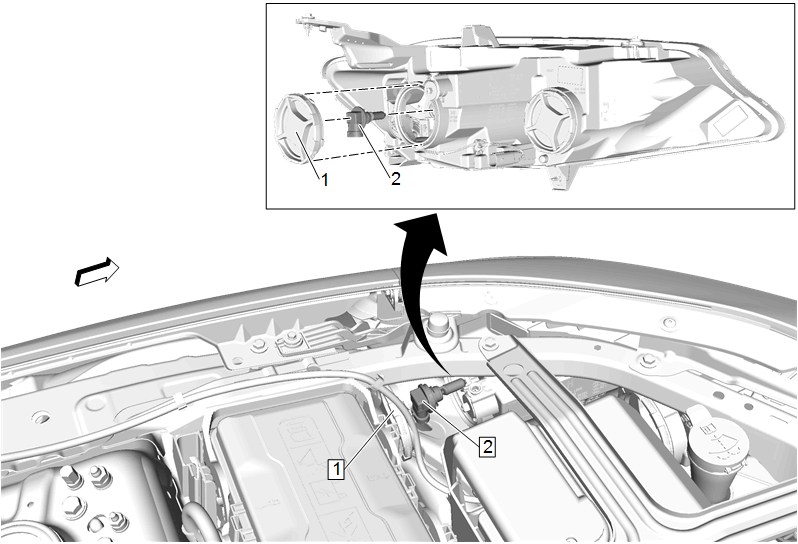

Callout	Component Name
1	Headlamp Bulb Access Cover
2	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Rotate the bulb counterclockwise to remove the bulb from the socket.

Callout

Component Name

Headlamp Bulb Access Cover

Headlamp Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector.
Rotate the bulb counterclockwise to remove the bulb from the socket.
