High Beam Headlamp Bulb Replacement - Right Side (LFV)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

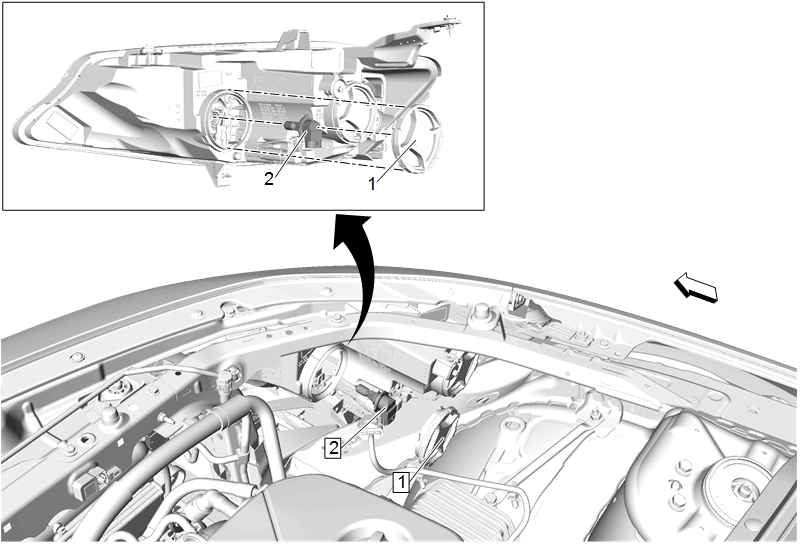

Callout	Component Name
Preliminary Procedure Remove Air Cleaner Assembly. Air Cleaner Assembly Replacement
1	Headlamp Bulb Access Cover
2	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Rotate the bulb counterclockwise to remove the bulb from the socket.

Callout

Component Name

Preliminary Procedure
Remove Air Cleaner Assembly. Air Cleaner Assembly Replacement

Headlamp Bulb Access Cover

Headlamp Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector.
Rotate the bulb counterclockwise to remove the bulb from the socket.
