Daytime Running Lamp Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

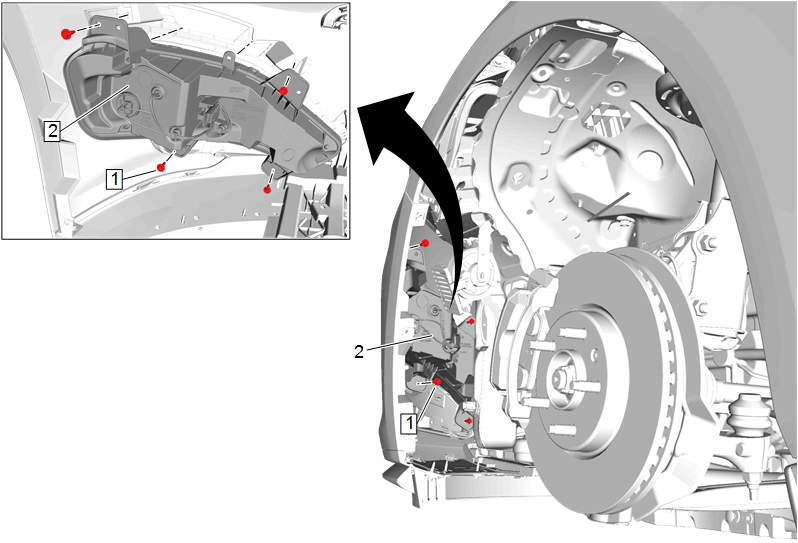

Callout	Component Name
Preliminary Procedures Remove appropriate front wheelhouse liner: For left side, refer to Front Wheelhouse Liner Replacement - Left Side . For right side, refer to Front Wheelhouse Liner Replacement - Right Side (LFV, LTG)Front Wheelhouse Liner Replacement - Right Side (LKN) .
1	Daytime Running Lamp Bolt[4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Daytime Running Lamp Procedure Disconnect the electrical connector at the daytime running lamp. Disconnect the electrical connector at the windshield washer solvent tank. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures
Remove appropriate front wheelhouse liner:

For left side, refer to Front Wheelhouse Liner Replacement - Left Side .
For right side, refer to Front Wheelhouse Liner Replacement - Right Side (LFV, LTG)Front Wheelhouse Liner Replacement - Right Side (LKN) .

Daytime Running Lamp Bolt[4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Daytime Running Lamp

Procedure

Disconnect the electrical connector at the daytime running lamp.
Disconnect the electrical connector at the windshield washer solvent tank.
Transfer components as necessary.
