Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake pedal position sensor electrical connector.

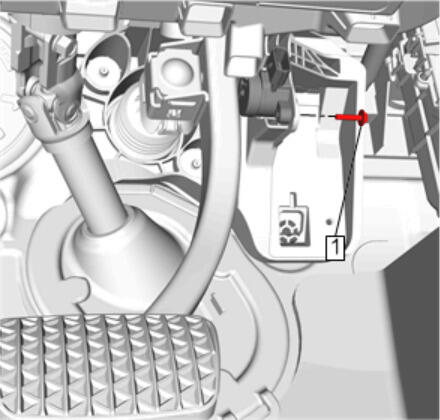

  2. GM4239772Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Position Sensor Bolt (1) - Remove and DISCARD

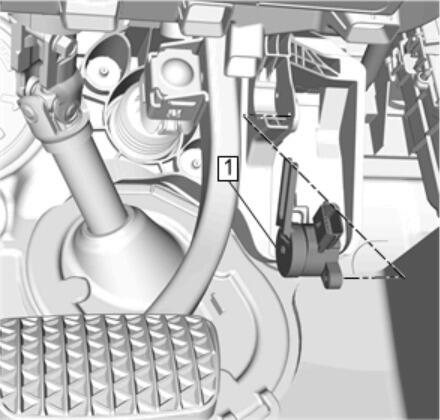

  3. GM4239779Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Position Sensor (1) - Remove
