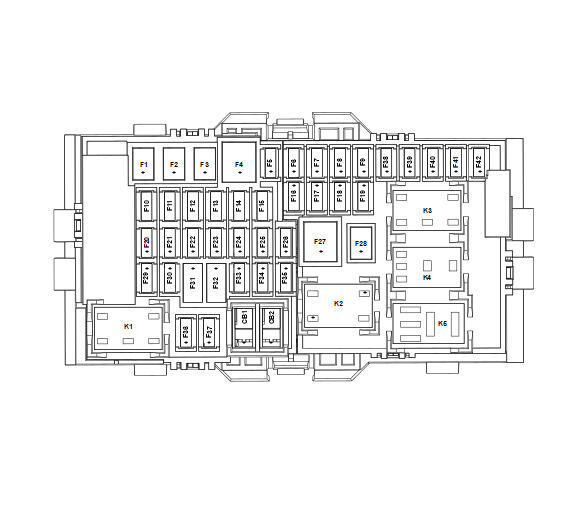

X51A Fuse Block - Instrument Panel Top View

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
GM4161995Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
F1 F1 F1DA Fuse 30A
  • S79D Window Switch - Driver (AEC)
  • S79D Window Switch - Driver
F2 F2 F2DA Fuse 30A
  • S79RR Window Switch - Right Rear
  • S79P Window Switch - Passenger (AED without A45)
F3 F3 F2DA Fuse 30A
  • Not Used
F4 F4 F4DA Fuse 40A
  • M8 Blower Motor
F5 F5 F5DA Fuse 15A
  • K9 Body Control Module (without KL9)
F6 F6 F6DA Fuse 15A
  • Not Used
F7 F7 F7DA Fuse 15A
  • Not Used
F8 F8 F8DA Fuse 15A
  • K9 Body Control Module
F9 F9 F9DA Fuse 5A
  • K9 Body Control Module
F10 F10 F10DA Fuse 15A
  • K9 Body Control Module
F11 F11 F11DA Fuse 15A
  • Not Used
F12 F12 F12DA Fuse 15A
  • Not Used
F13 F13 F13DA Fuse 15A
  • Not Used
F14 F14 F14DA Fuse 30A
  • Not Used
F15 F15 F15DA Fuse 20A
  • K71 Transmission Control Module (MNH)
F16 F16 F16DA Fuse 30A
  • K108 Active Noise Cancellation Module (UQF with NKC)
  • T3 Audio Amplifier (UQA)
F17 F17 F17DA Fuse 15A
  • S65D Seat Lumbar Support Switch - Driver (AL9)
  • S65P Seat Lumbar Support Switch - Passenger (AT9)
F18 F18 F18DA Fuse Empty
  • Not Used
F19 F19 F19DA Fuse 30A
  • Not Used
F20 F20 F20DA Fuse 15A
  • K9 Body Control Module (without KL9)
F21 F21 F21DA Fuse 15A
  • K9 Body Control Module
F22 F22 F22DA Fuse 15A
  • Not Used
F23 F23 F23DA Fuse -
  • Not Used
F24 F24 F24DA Fuse 10A
  • K36 Inflatable Restraint Sensing and Diagnostic Module
  • K85 Passenger Presence Module (without HP4)
F25 F25 F25DA Fuse 7.5A
  • X84 Data Link Connector
F26 F26 F26DA Fuse 30A
  • Not Used
F27 F27 F27DA 30A
  • Not Used
F28 F28 F28DA 30A
  • Not Used
F29 F29 F29DA 10A
  • K9 Body Control Module
F30 F30 F30DA 10A
  • A98 Front Overhead Console Assembly
  • S25 Garage Door Opener (UG1)
F31 F31 F31DA 2A
  • S70L Steering Wheel Controls Switch - Left
  • S70R Steering Wheel Controls Switch - Right
F32 F32 F32DA 2A
  • Not Used
F33 F33 F33DA 10A
  • K33 HVAC Control Module
F34 F34 F34DA 5A
  • Not Used
F35 F35 F35DA 7.5A
  • Not Used
F36 F36 F36DA 5A
  • T22 Mobile Device Wireless Charger Module (K4C)
  • X92 USB Receptacle (USS)
F37 F37 F37DA F20A
  • X80G Accessory Power Receptacle - Instrument Panel
F38 F38 F38DA 5A
  • K73 Telematics Communication Interface Control Module (UE1)
F39 F39 F39DA 7.5A
  • A26 HVAC Controls
  • K188 Human Machine Interface Control Module Bypass Module (IO5/IO6)
  • P16 Instrument Cluster
  • P17 Info Display Module
F40 F40 F40DA 10A
  • B218L Side Object sensor Module - Left (UKC)
  • B218R Side Object sensor Module - Right (UKC)
  • B174W Frontview Camera - Windshield (UHX without UGN)
  • K124 Active Safety Control Module (UGN)
  • K182 Parking Assist Control Module (UD5
  • UFQ or UKC)
F41 F41 F41DA 15A
  • K9 Body Control Module (KL9)
F42 F42 F42DA 15A
  • A11 Radio
  • K74 Human Machine Interface Control Module (IO5 or IO6)
  • X83 Auxiliary Audio Input
Relays
K1 K1 - -
  • Not Used
K2 K2 KR76 Retained Accessory Power Relay -
  • CB1DA
  • CB2DA
  • F36DA
  • F37DA
K3 K3 - -
  • Not Used
K4 K4 - -
  • Not Used
K5 K5 - -
  • Not Used
Circuit Breakers
CB1 CB1 CB1DA 15A
  • Not Used
CB2 CB2 CB2DA 20A
  • X80H Accessory Power Receptacle - Center Console
