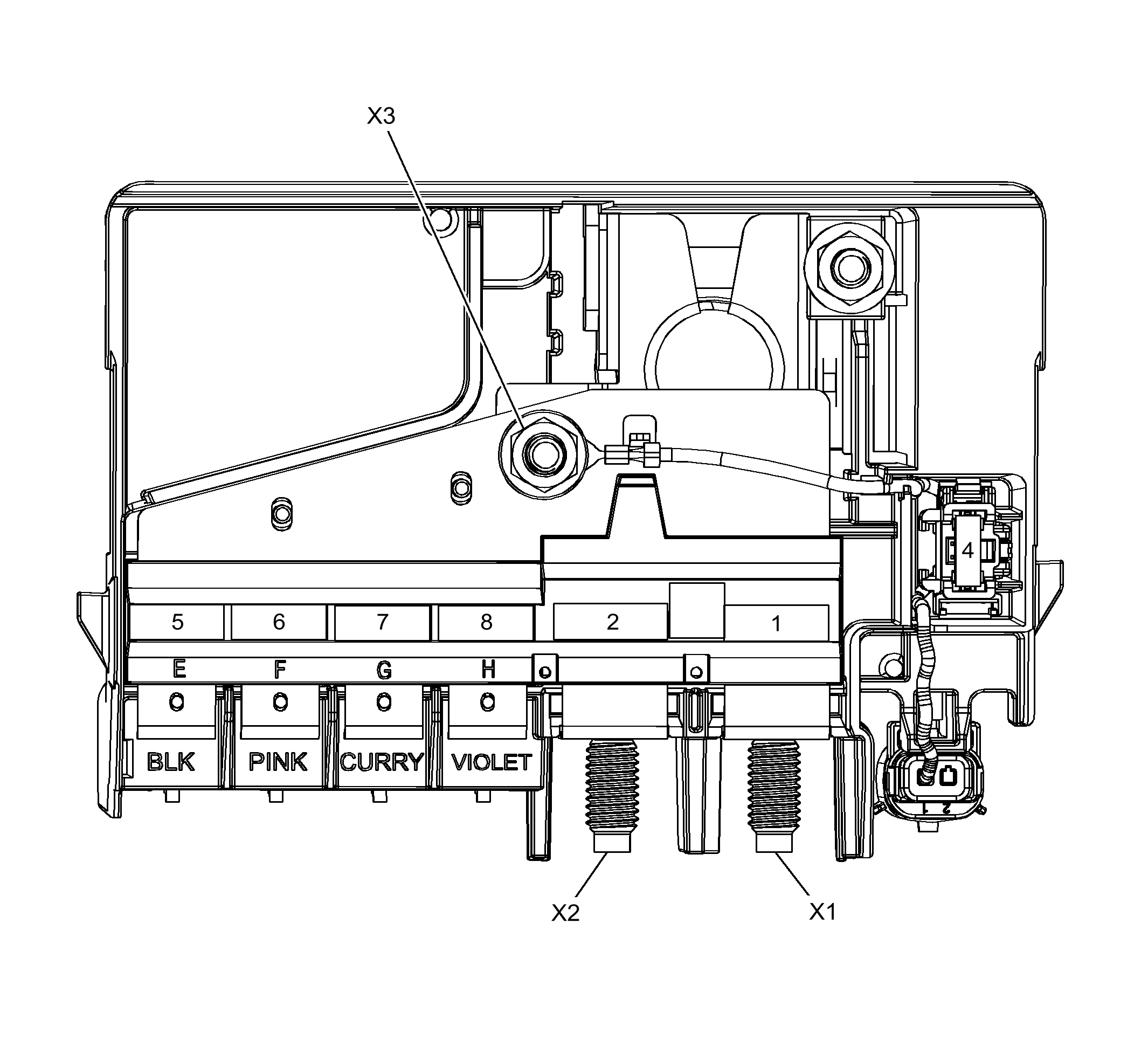

X50D Fuse Block - Battery Top View (LFV/LTG)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Usage Table
| No. |
Device Label Name |
Device Assigned Name |
Rating |
Description |
| 1 |
- |
F1BA |
350A (LTG)
400A (LFV) |
|
| 2 |
- |
F2BA |
250A |
- X50A Fuse Block - Underhood
|
| 3 |
- |
F4BA |
5A |
- K9 Body Control Module (LTG)
- B110 Battery Sensor Module (LFV)
|
