X50D Fuse Block - Battery Top View (HP4)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

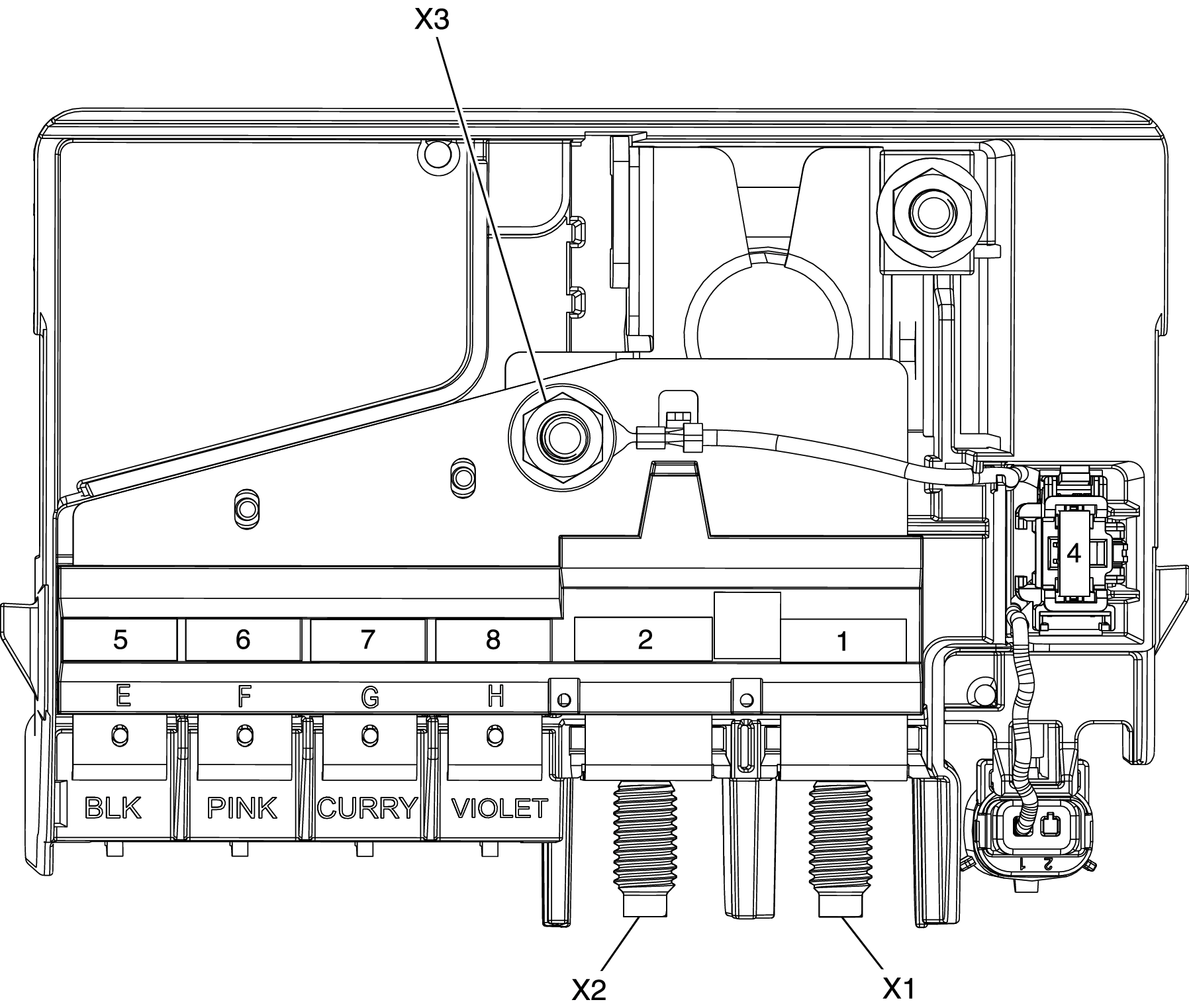

GM4161987Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
1 - F1BA 350A
  • X50D Fuse Block - Battery
2 - F2BA 150A
  • K1 14V Power Module
3 - F4BA 5A
  • K9 Body Control Module
