Automatic Transmission Range Selector Lever Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

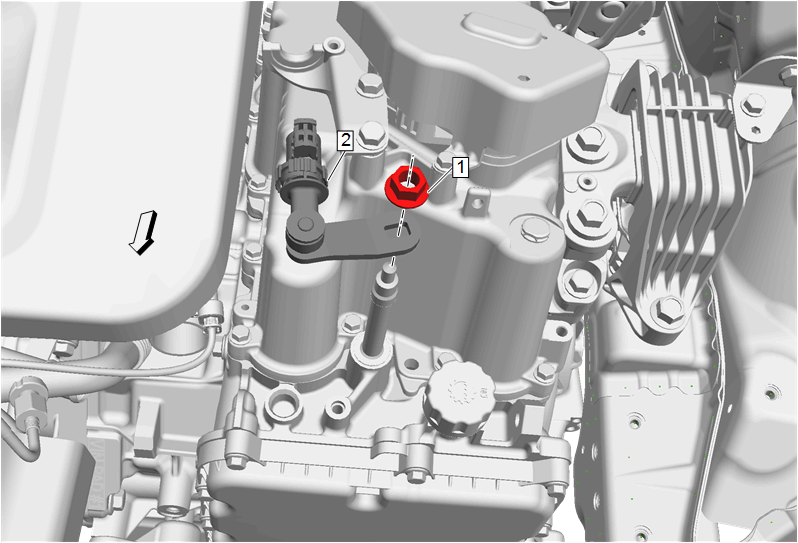

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
WARNING:
After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury. |
|
| 1 | Transmission Range Selector Lever Nut
WARNING:
Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.
CAUTION:
Tighten 30 N.m (22 lb ft) |
| 2 | Automatic Transmission Range Selector Lever Procedure After the installation is complete perform a range selector lever cable adjustment. Range Selector Lever Cable Adjustment |
