Manual Shift Shaft Seal Installation

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

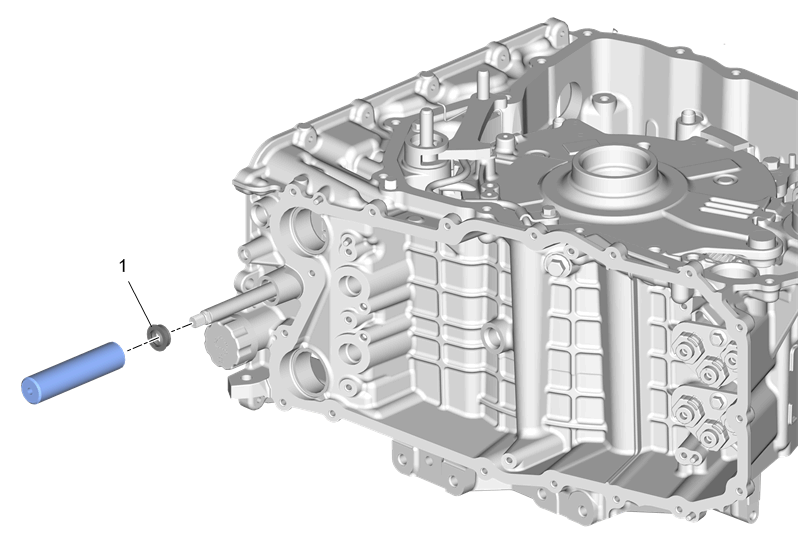

GM4051642Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Manual Shift Shaft Seal
Special Tools
DT-51672  Seal Installer
For equivalent regional tools, refer to Special Tools .
