Automatic Transmission Wiring Harness Bracket Installation

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

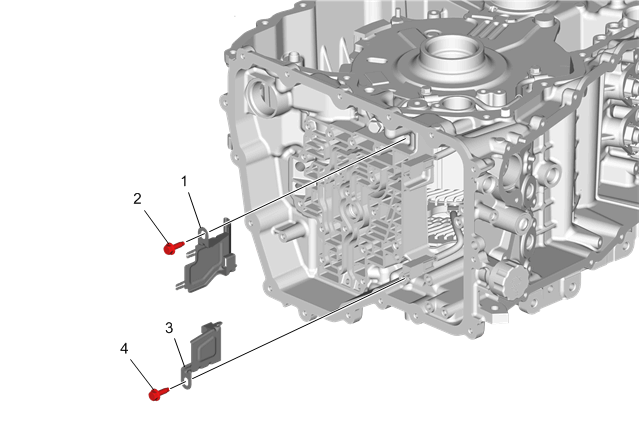

GM4037347Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Wiring Harness Bracket Installation

Callout Component Name
1 Automatic Transmission Wiring Harness Bracket
2 Automatic Transmission Wiring Harness Connector Bracket Bolt [1x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
3 Automatic Transmission Wiring Harness Bracket
4 Automatic Transmission Wiring Harness Connector Bracket Bolt [1x]
Tighten
9 N.m (80 lb in)
