Rear Seat Back Cushion Hinge Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

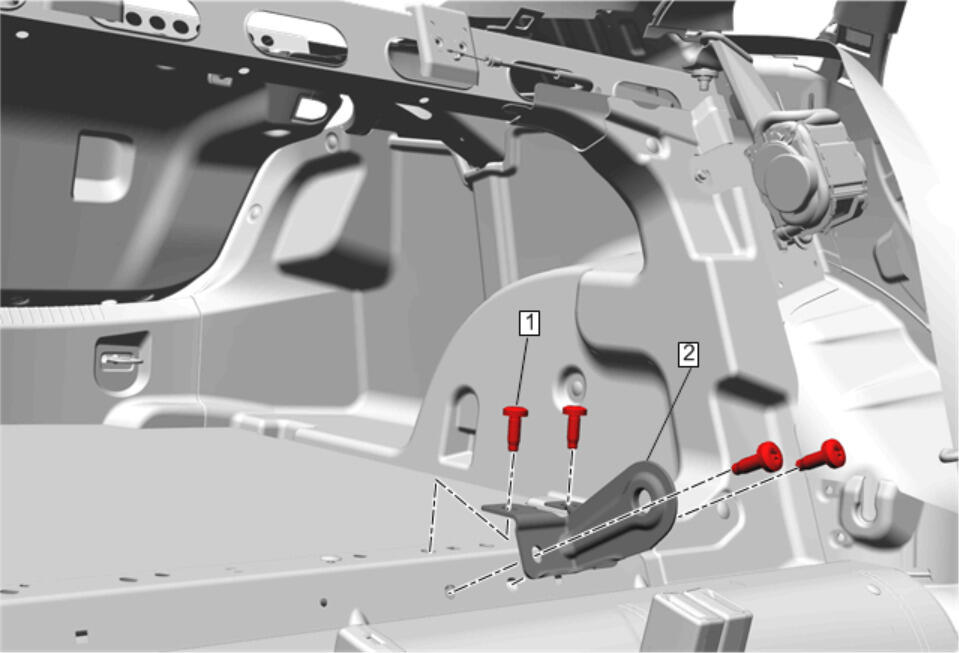

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Seat Back Cushion Removal and Installation (40%) Rear Seat Back Cushion Removal and Installation (60%) |
|
| 1 | Rear Seat Back Cushion Hinge Fastener [4x]
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Back Cushion Hinge |
