Rear Seat Back Cushion Cover and Pad Replacement (60%)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

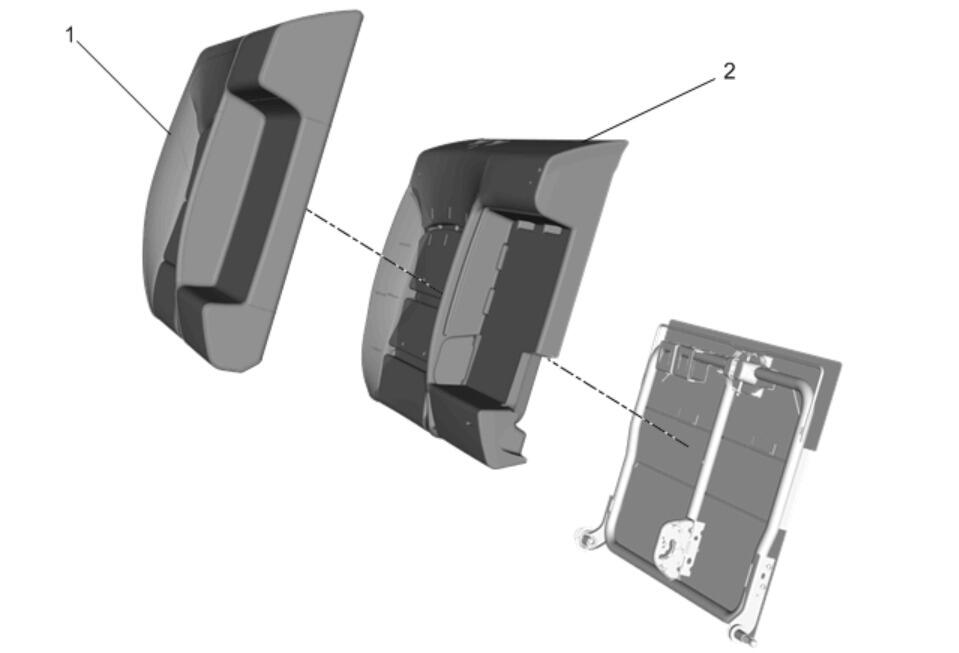

GM4214975Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Seat Back Cushion Removal and Installation (40%) Rear Seat Back Cushion Removal and Installation (60%)
  2. Rear Seat Armrest Replacement
  3. Rear Seat Head Restraint Guide Replacement
1 Rear Seat Back Cushion Cover

Procedure

  1. Disengage the J-channel retainers from the seat back cushion frame.
  2. Open the right and left seat back cushion cover zippers.
  3. Remove the seat back cushion cover and pad from the seat cushion frame as an assembly.
2 Rear Seat Back Cushion Pad

Procedure

  1. Separate the seat cushion cover from the seat cushion pad by removing all hog rings, disengaging the hook and loop fasteners and pulling the cover away from the pad.
  2. Transfer components as necessary.
