Instrument Panel Lower Airbag Replacement - Driver Side

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

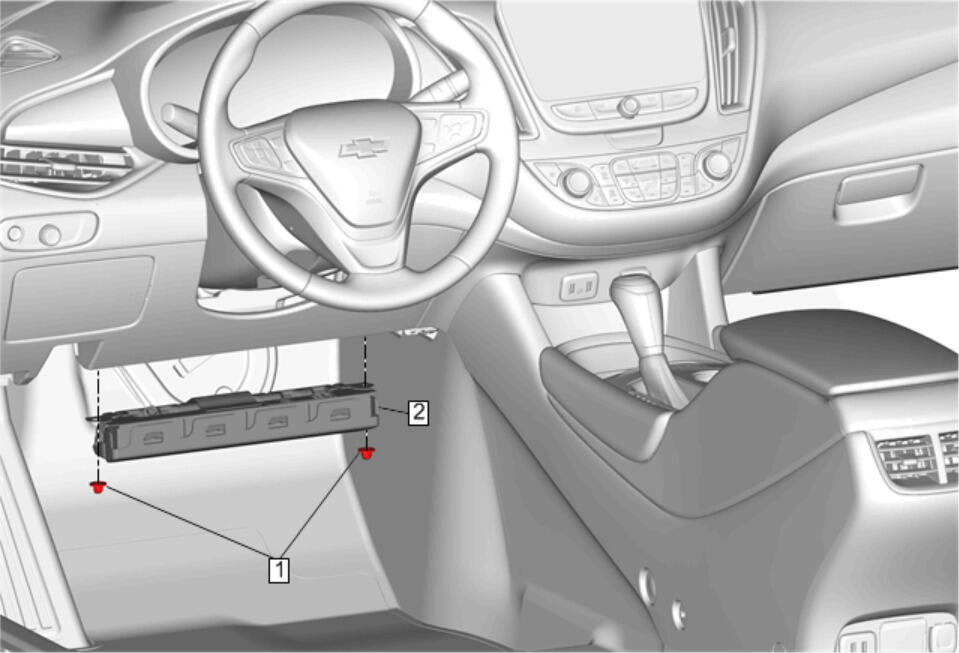

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedure SIR Disabling and Enabling
1	Instrument Panel Lower Airbag Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Instrument Panel Lower Airbag - Driver Side Procedure Disconnect the electrical connector. Inflatable Restraint Module Handling and Scrapping SIR Disabling and Enabling

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedure SIR Disabling and Enabling

Instrument Panel Lower Airbag Nut [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Instrument Panel Lower Airbag - Driver Side

Procedure

Disconnect the electrical connector.
Inflatable Restraint Module Handling and Scrapping
SIR Disabling and Enabling
