Instrument Panel Airbag Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Instrument Panel Assembly Replacement
1	Instrument Panel Airbag Procedure Inflatable Restraint Module Handling and Scrapping Insert a wood straight edge, one per side behind all locking tabs, to simultaneously release the instrument panel airbag housing from the instrument panel chute without overextending the airbag locking tabs. Use a wood straight edge that is approximately 50.8 cm (20 in) long and 5 mm (0.20 in) thick with a rounded edge. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Instrument Panel Assembly Replacement

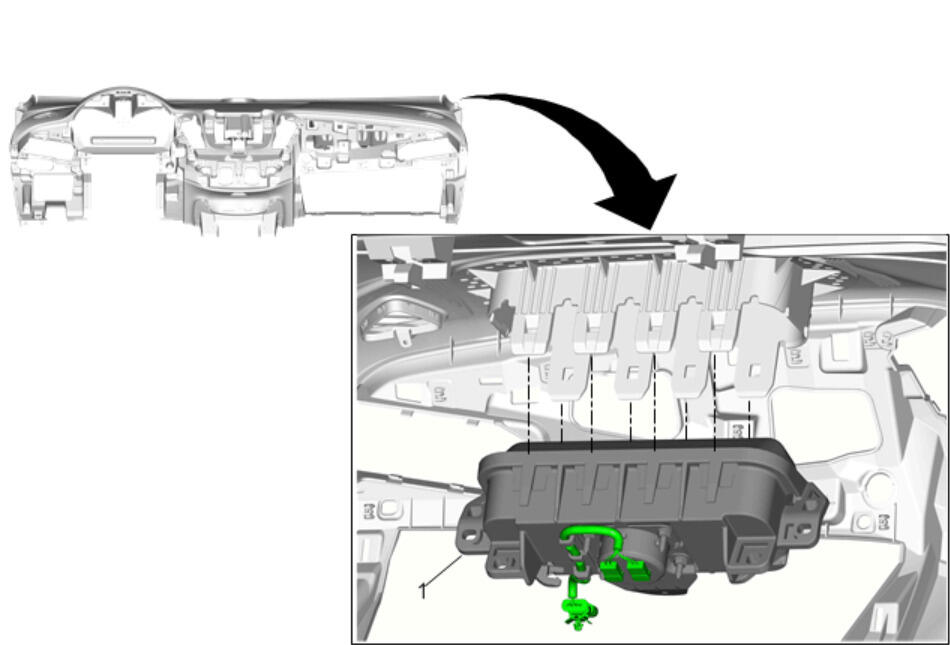

Instrument Panel Airbag

Procedure

Inflatable Restraint Module Handling and Scrapping
Insert a wood straight edge, one per side behind all locking tabs, to simultaneously release the instrument panel airbag housing from the instrument panel chute without overextending the airbag locking tabs. Use a wood straight edge that is approximately 50.8 cm (20 in) long and 5 mm (0.20 in) thick with a rounded edge.
Enable the SIR System. SIR Disabling and Enabling
