Front and Rear Row Seat Roof Rail Airbag Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

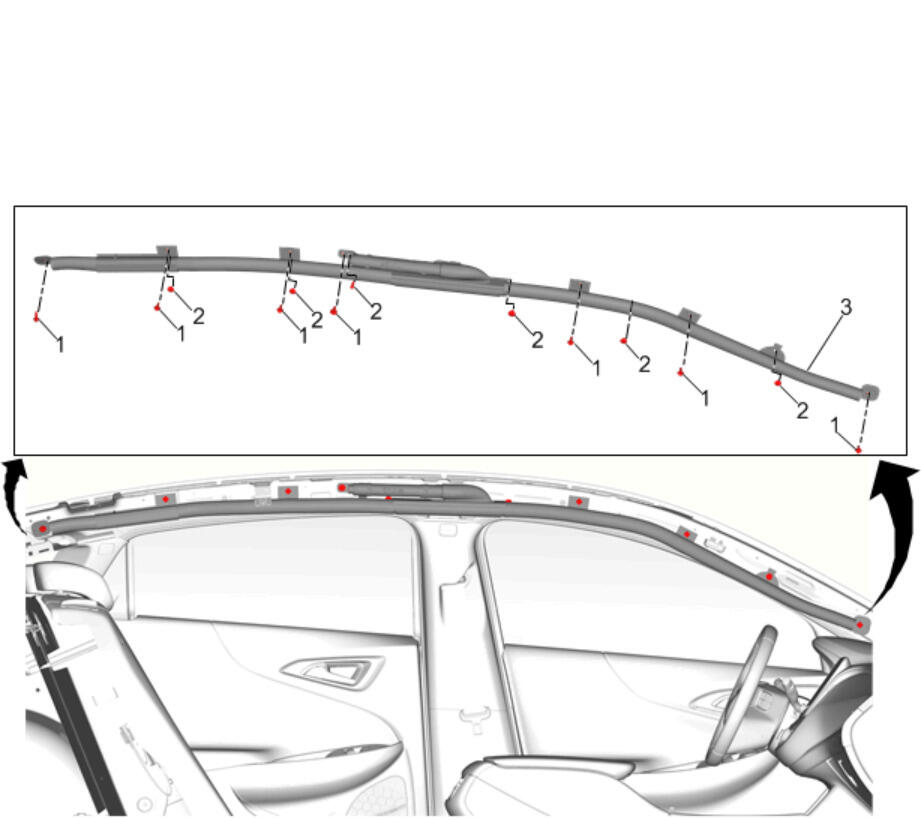

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedures SIR Disabling and Enabling It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (With Sunroof) , or Headlining Trim Panel Replacement (Without Sunroof)
1	Front and Rear Row Seat Roof Rail Airbag Fastener [7x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front and Rear Row Seat Roof Rail Airbag Retainer [7x]
3	Front and Rear Row Seat Roof Rail Airbag Procedure Disconnect the electrical connector. Remove the roof side rail inflatable restraint module from the vehicle. Inflatable Restraint Module Handling and Scrapping
