Front Seat Belt Anchor Plate Tensioner Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

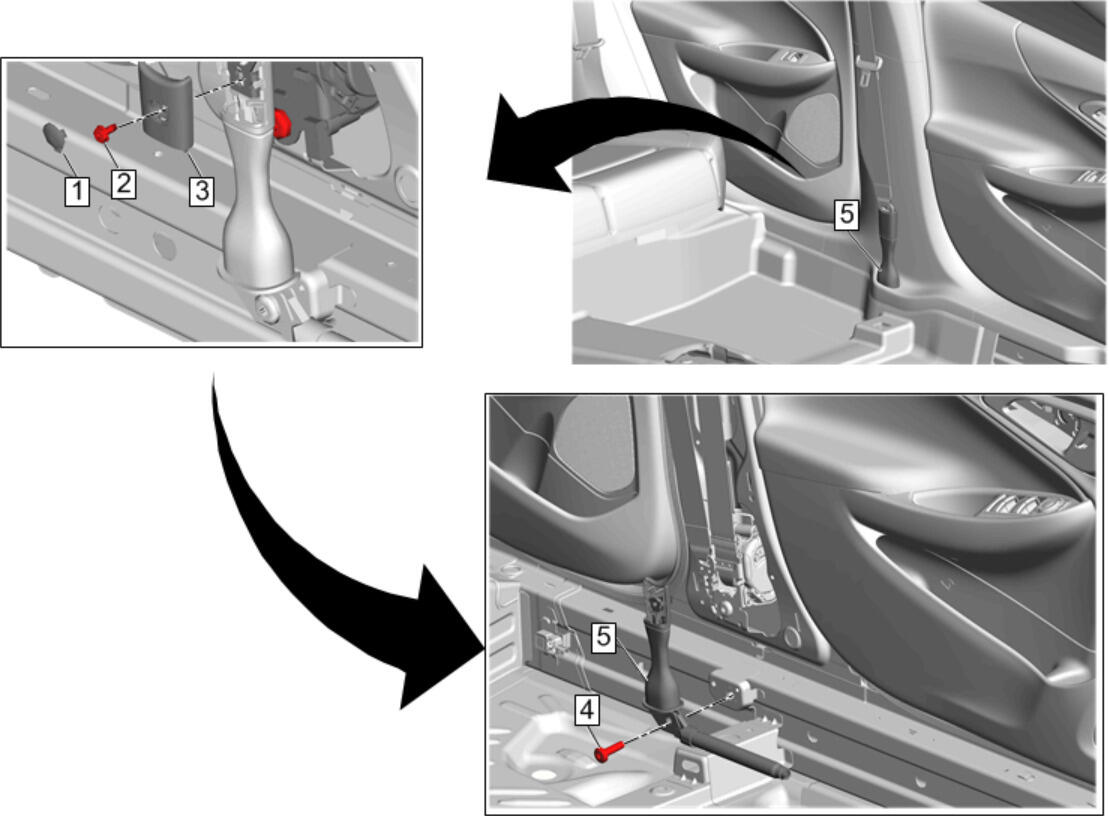

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedures SIR Disabling and Enabling Center Pillar Lower Trim Panel Replacement
1	Front Seat Belt Anchor Plate Tensioner Bolt Cap
2	Front Seat Belt Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Front Seat Belt Anchor Plate Tensioner Cover
4	Front Seat Belt Anchor Plate Tensioner Bolt Procedure Fold the edge of the rear floor panel carpet down and out of the way to access the bolt. Tighten 45 N.m (33 lb ft)
5	Front Seat Belt Anchor Plate Tensioner Procedure Disconnect the electrical connector.
